Thank you for choosing Gunstreet. below is the instructions for a Modern Wiring to be installed in your SG.

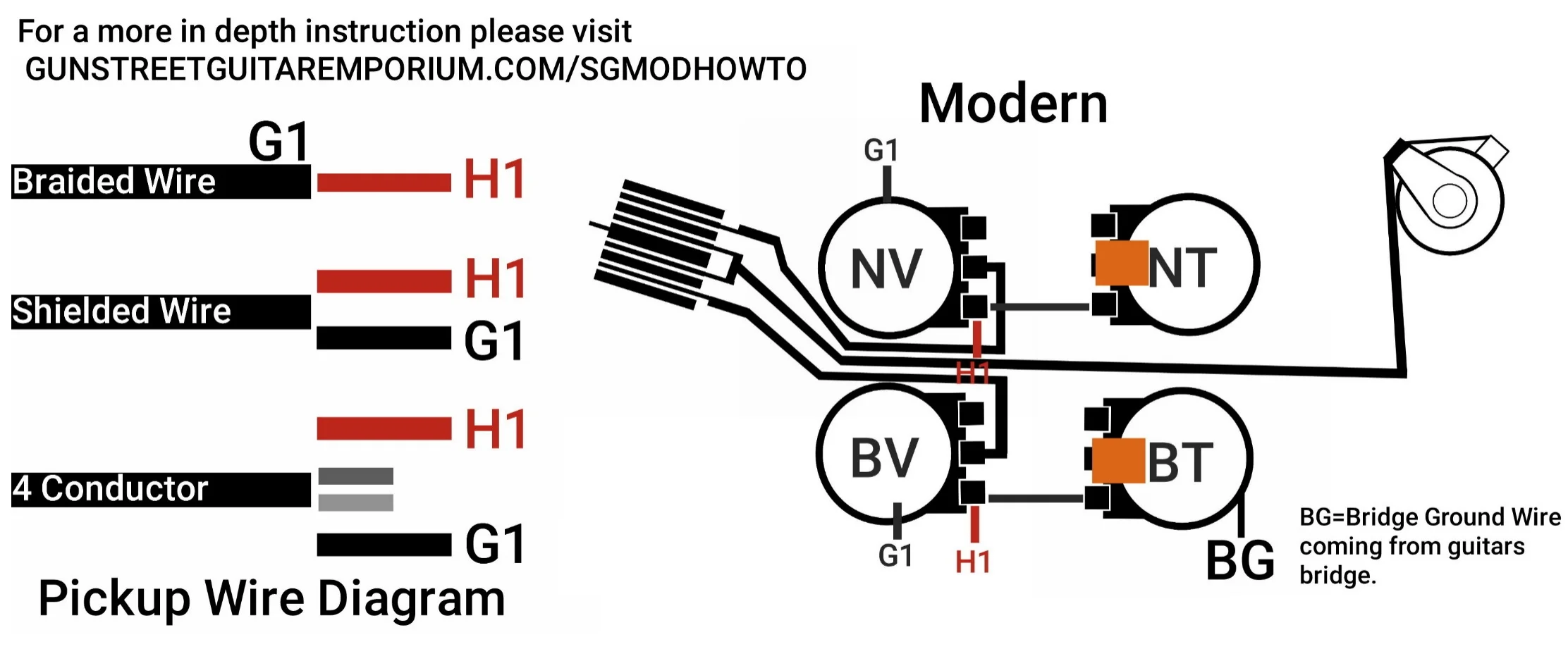

Most Common Pickup Wires

Key


H1=

Hot Output

G1=

Ground



1470946942-picsay (2).png

Stage One

Bridge Volume Install

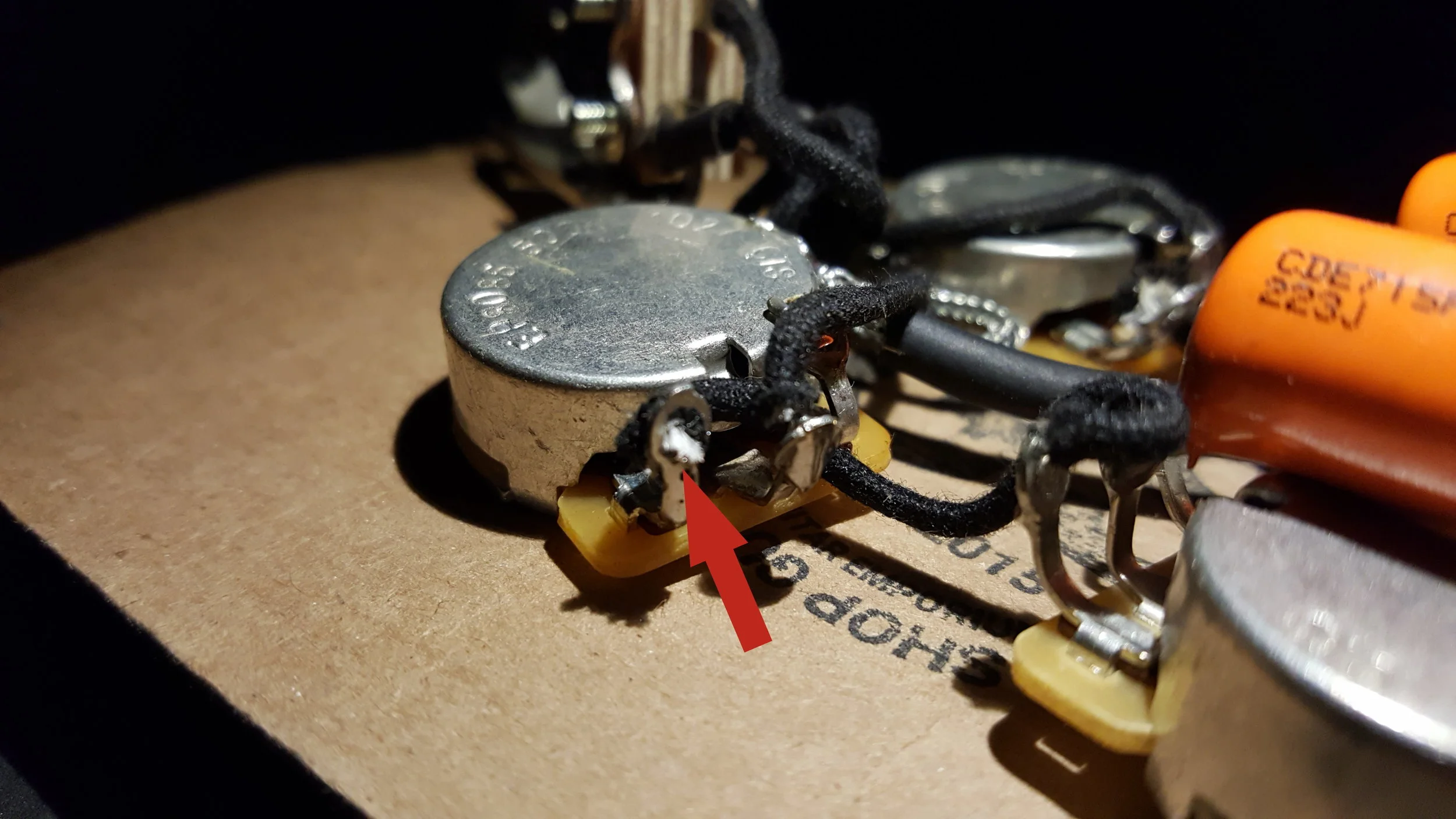

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions

how to install sg mod bridge hot.jpg

how to install sg mod bridge ground.jpg

Next, Solder the pickups Ground to the casing of the Volume Pot.

Repeat these steps for the Neck Volume



Neck Volume Install

Just like the Bridge pickup. Solder the Hot Pickup wire to the First Lug on the potentiometer.

how to install sg mod neck hot.jpg

how to install sg mod neck ground.jpg

Next, Solder the pickups Ground to the casing of the Volume Pot.


sg bridge ground .jpg

Grounding the Harness

Solder the Ground Wire coming from your guitar bridge to the Casing of Any Pot

That's It!

Bridge Ground to Pot Casing


If you have any questions feel free to contact us!
