Thank you for choosing Gunstreet. below is the instructions for a 50s Wiring to be installed in your SG.

SG 50S WIRING HOW TO DIAGRAM

Most Common Pickup Wires

Key


H1=

Hot Output

G1=

Ground



1470946942-picsay (2).png

how to install Sg 50s Bridge Hot.jpg

Stage One

Bridge Volume Install

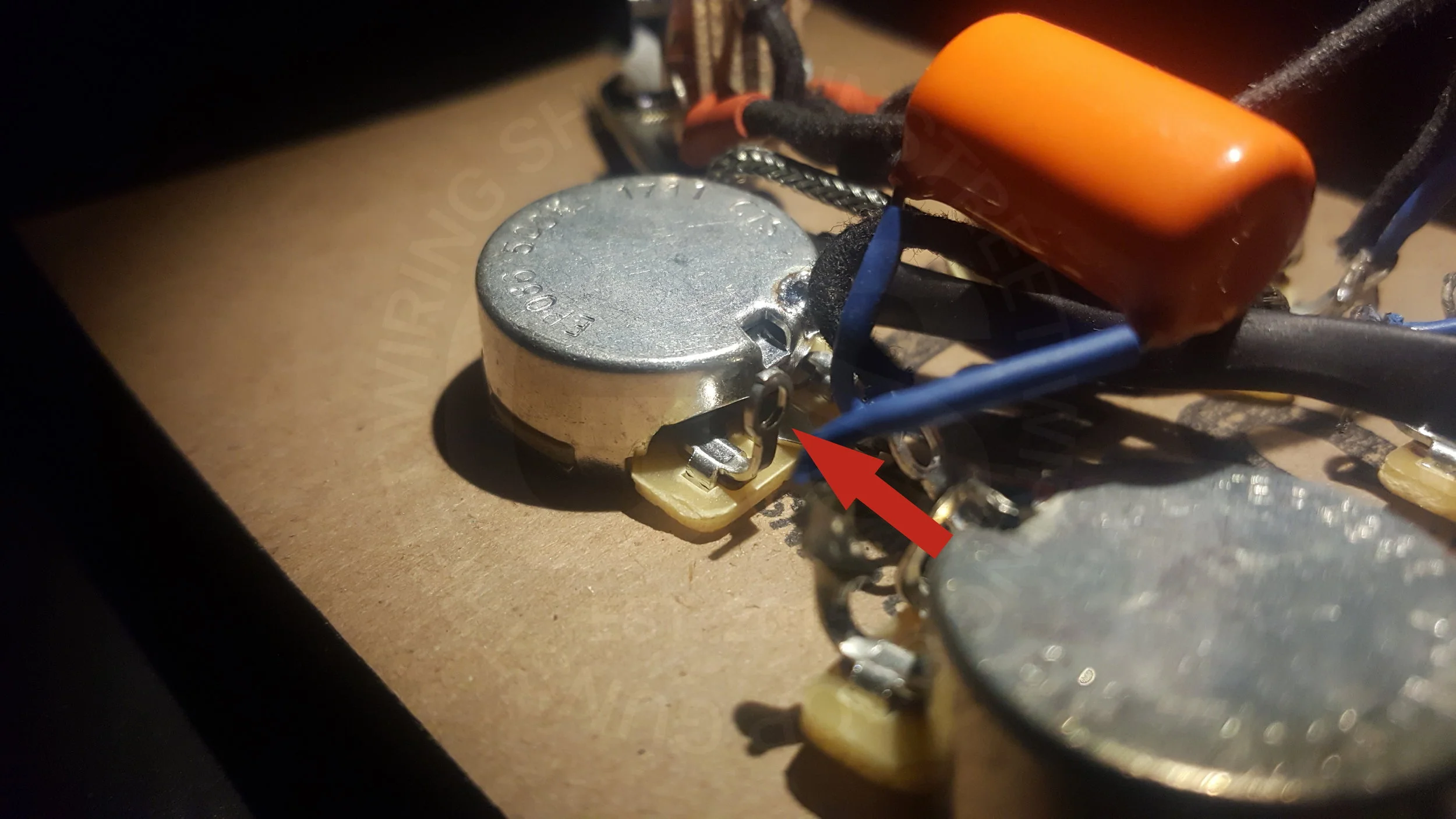

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions


Next, Solder the pickups Ground to the casing of the Volume Pot.


how to install sg 50s  bridge ground-picsay.jpg

how to install sg 50s neck hot.jpg

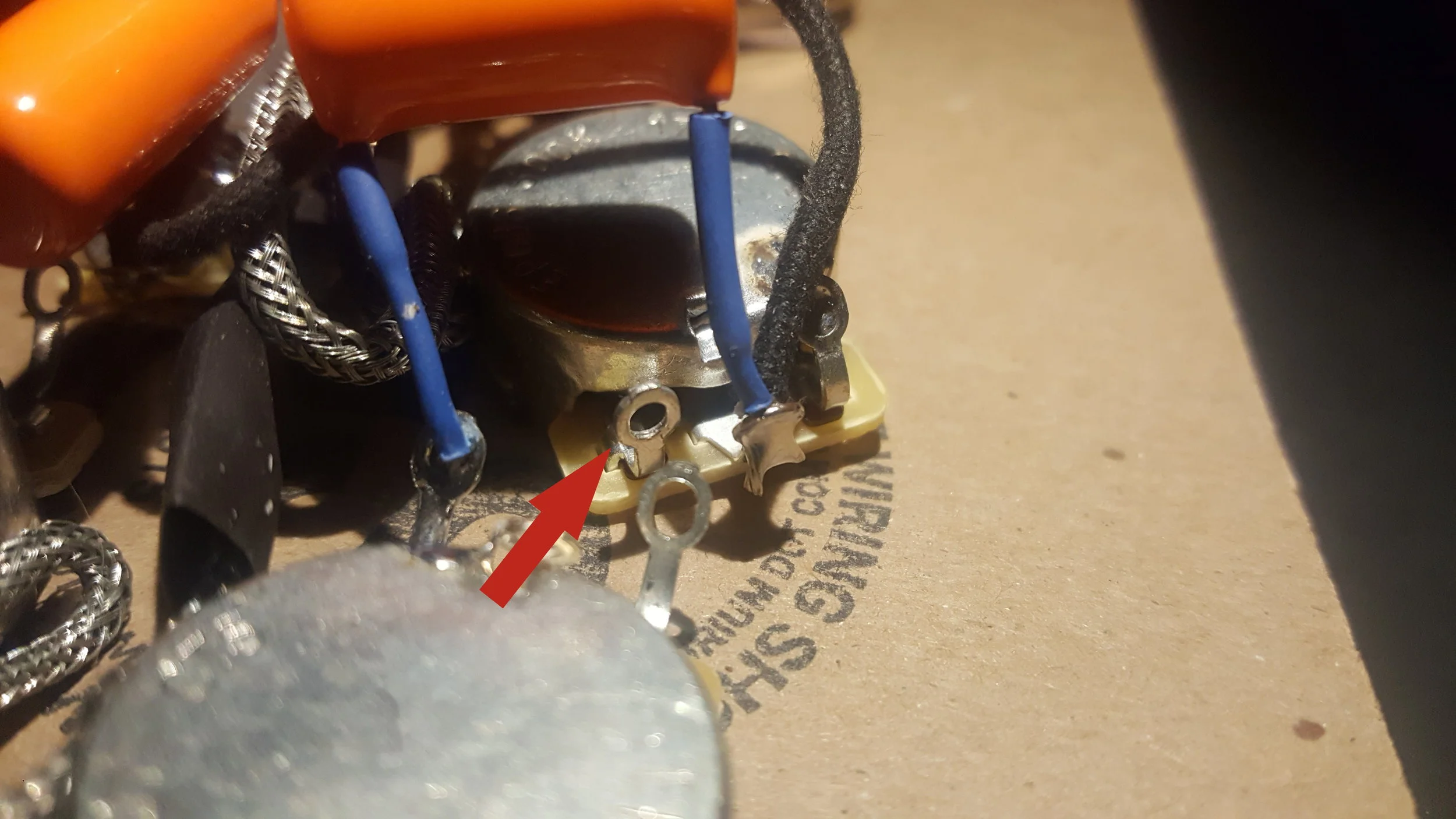

Just Like the Bridge Volume. Solder the Hot Pickup wire to the First Lug on the potentiometer.


Next, Solder the pickups Ground to the casing of the Volume Pot.

how to install sg 50s  neck ground.jpg

Sg ground to Pot
SG BRIDGE GROUND

Grounding the Harness

Solder the Ground Wire coming from your guitar bridge to the Casing of the Tone Pot

That's It!



If you have any questions feel free to contact us!
