Thank you for choosing Gunstreet. below is the instructions for a Modern Wiring to be installed in your Les Paul Special.
Neck Pickup Install-Part 1

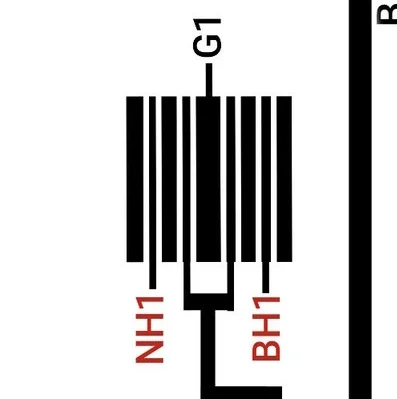

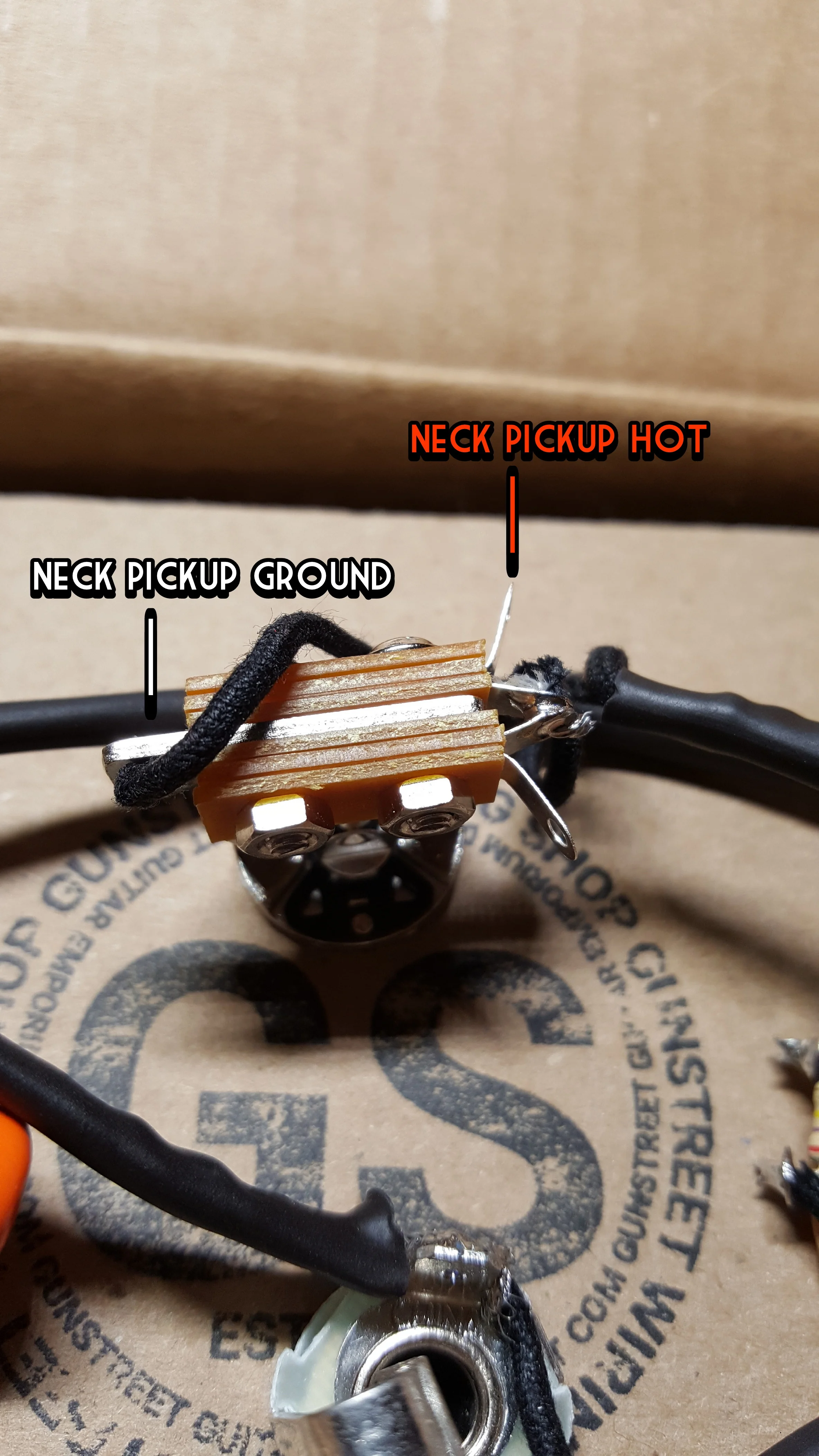

Solder the Hot Pickup wire to the First Lug on the Switch. See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions
Neck Volume: Neck Pickup Install-Part 2
Next, Solder the pickups Ground to the Back Lug on the Switch.

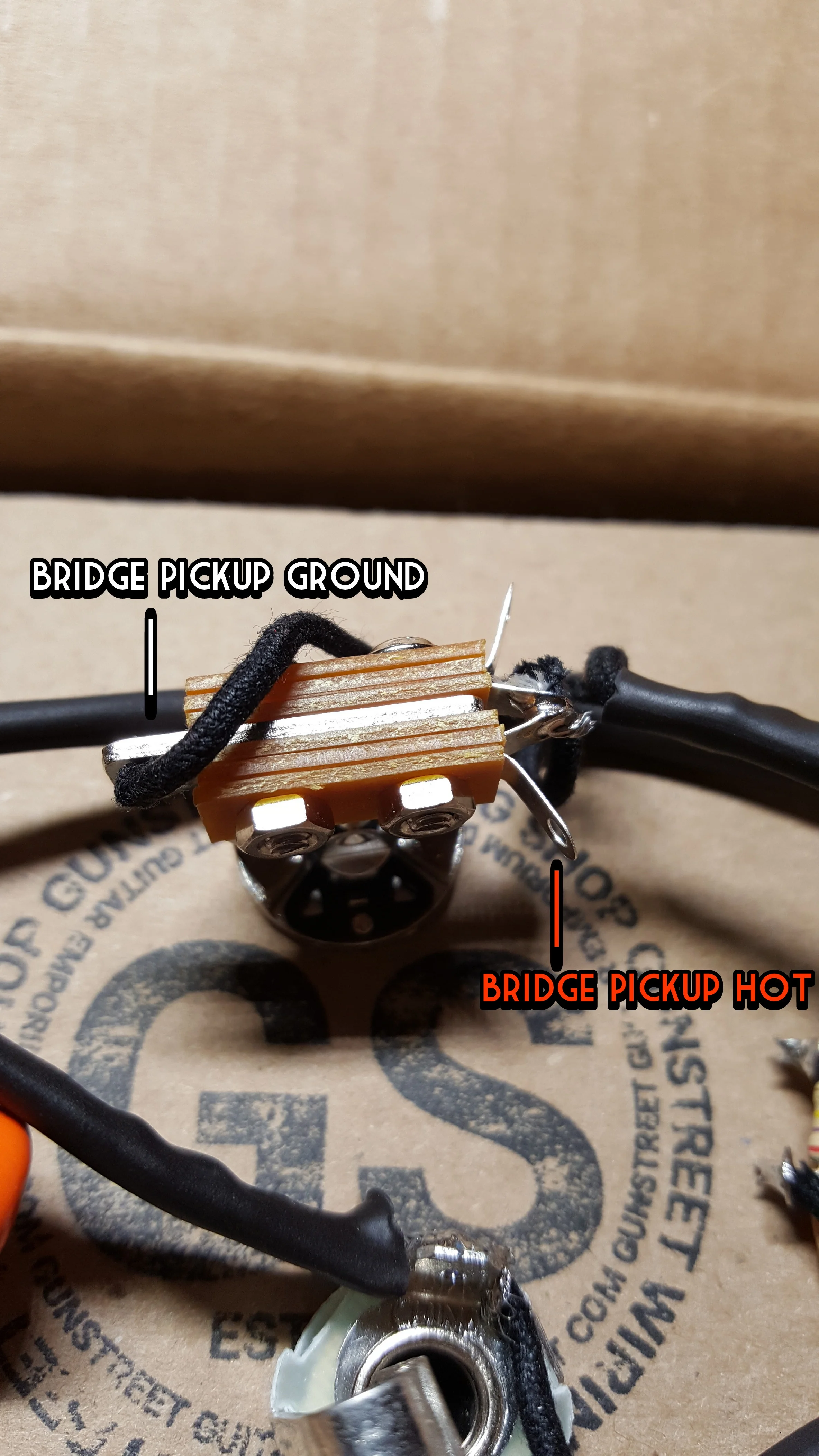

Repeat these steps for the Bridge Pickups
Grounding the Harness

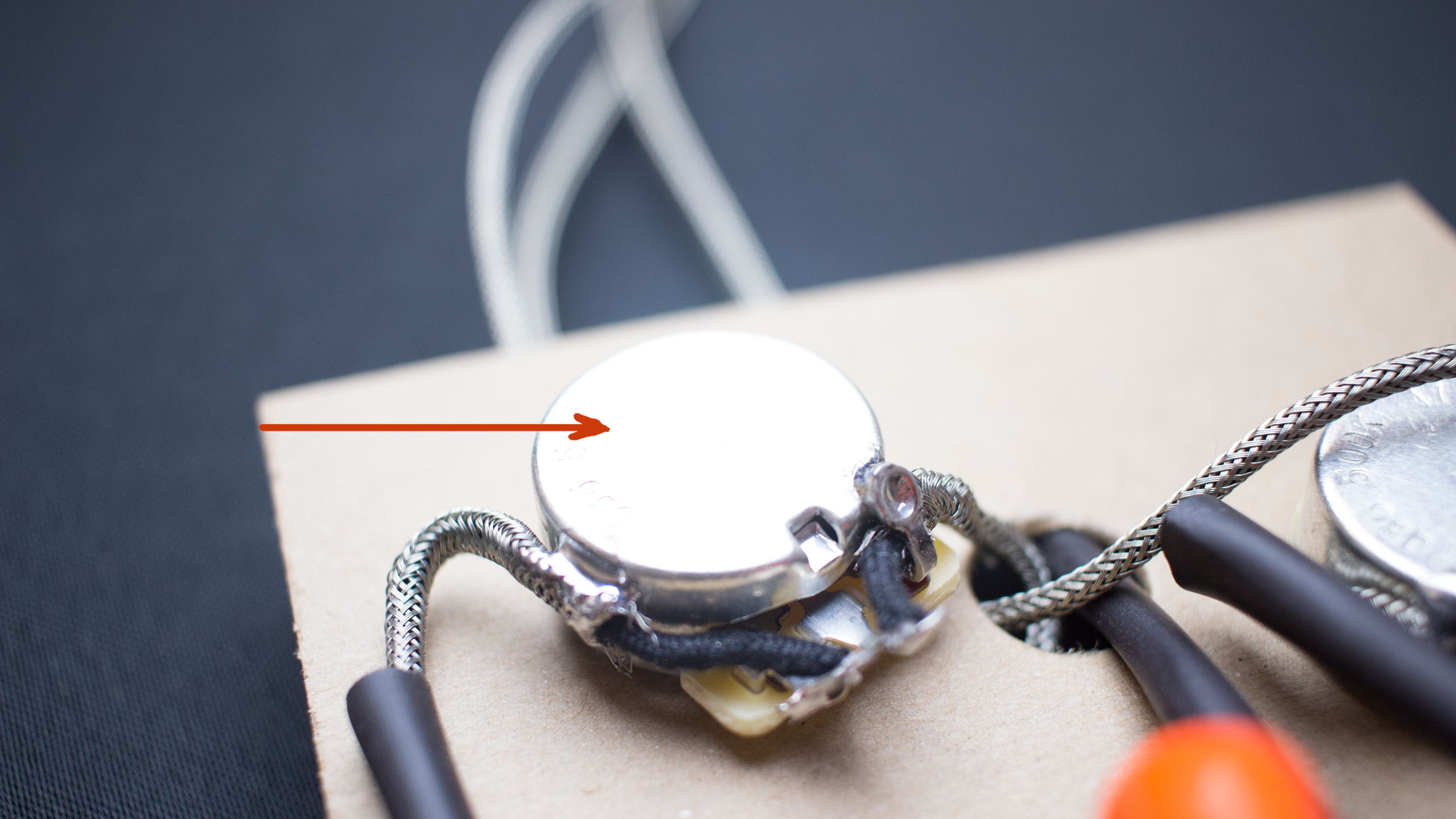

Solder the Ground Wire coming from your guitar bridge to the Casing of any Pot
If you have any questions feel free to contact us!
