Thank you for choosing Gunstreet. below is the instructions for a 50s Wiring to be installed in your Les Paul Special.

Les paul volume bleed diagram




Key


H1=

Hot Output

G1=

Ground

1470946942-picsay (2).png

20170506_224058-picsay (4).jpg

Neck Pickup Install-Part 1

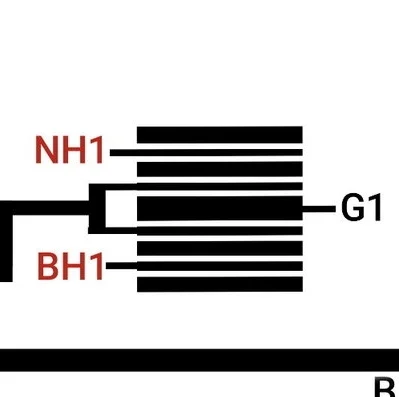

Solder the Hot Pickup wire to the First Lug on the Switch.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions




Neck Volume: Neck Pickup Install-Part 2

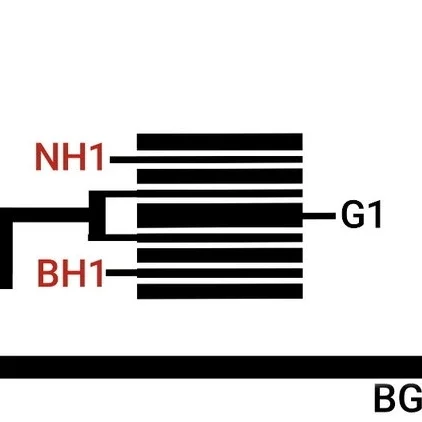

Next, Solder the pickups Ground to the Back Lug on the Switch.


20170506_224058-picsay (2).jpg

Repeat these steps for the Bridge Pickups


Las Paul bridge ground.jpg
lp mod br-G1.png

Grounding the Harness

Solder the Ground Wire coming from your guitar bridge to the Casing of any Pot



That's It!


If you have any questions feel free to contact us!
