Thank you for choosing Gunstreet. below is the instructions for a Volume Bleed Wiring to be installed in your Les Paul.

Les paul volume bleed diagram


Switch Install



3 way guitar switch o


Installing Pickups



Key


H1=

Hot Output

G1=

Ground

1470946942-picsay (2).png


Neck Volume: Neck Pickup Install-Part 1

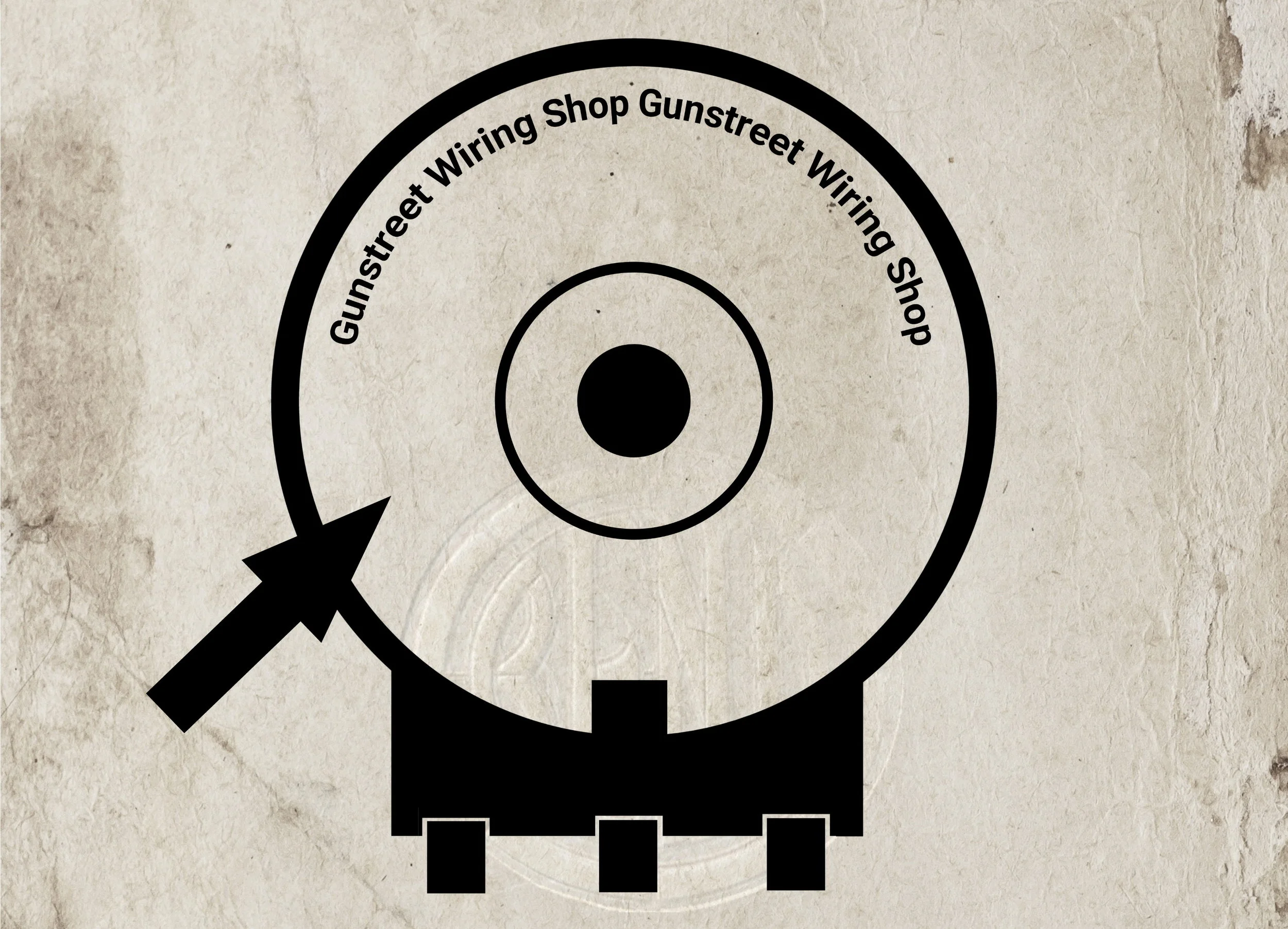

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions



volume pot Ground.jpg

Neck Volume: Neck Pickup Install-Part 2

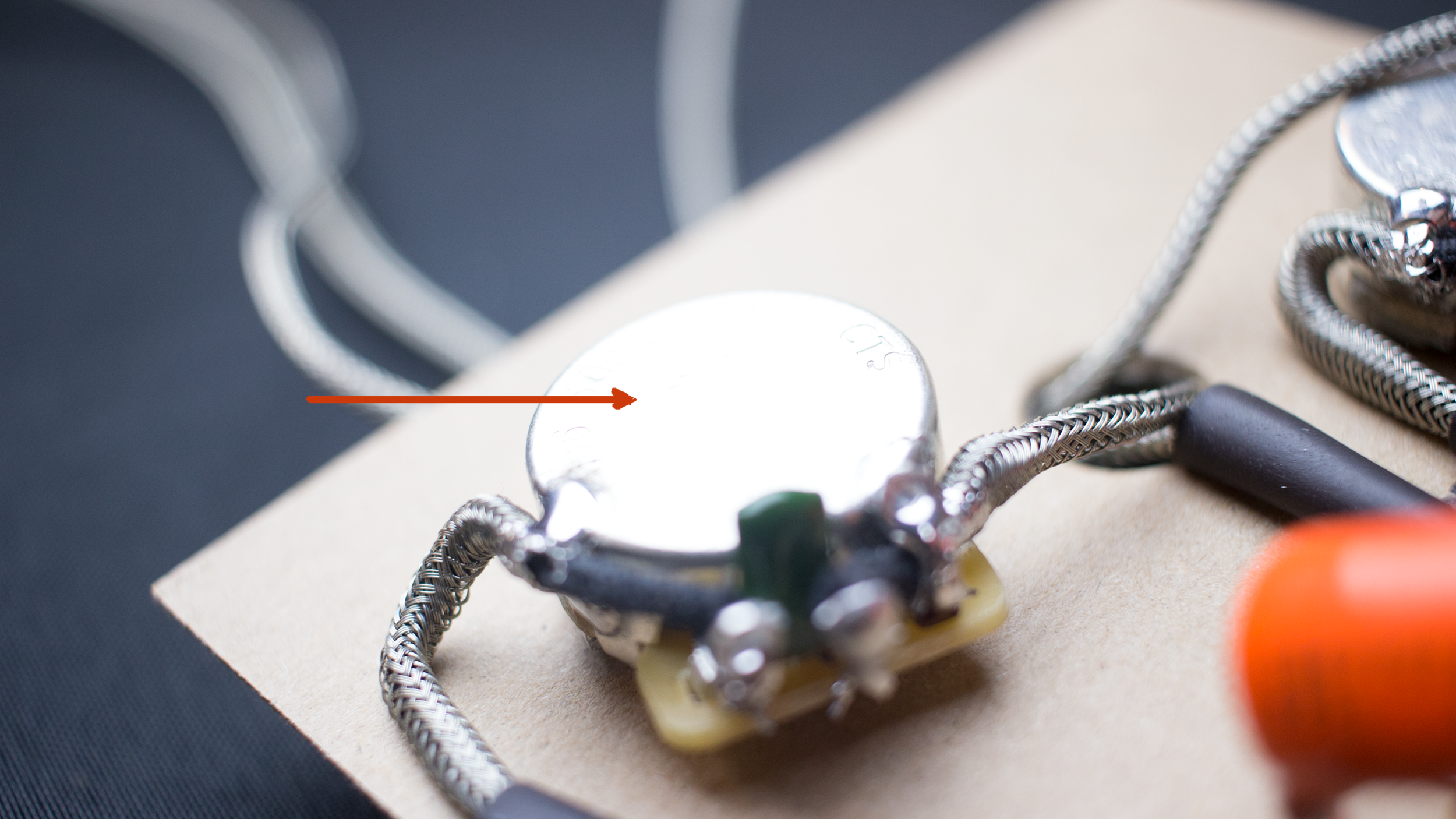

Next, Solder the pickups Ground to the casing of the Volume Pot.



Repeat these steps for the Bridge Volume


Las Paul bridge ground.jpg

Grounding the Harness

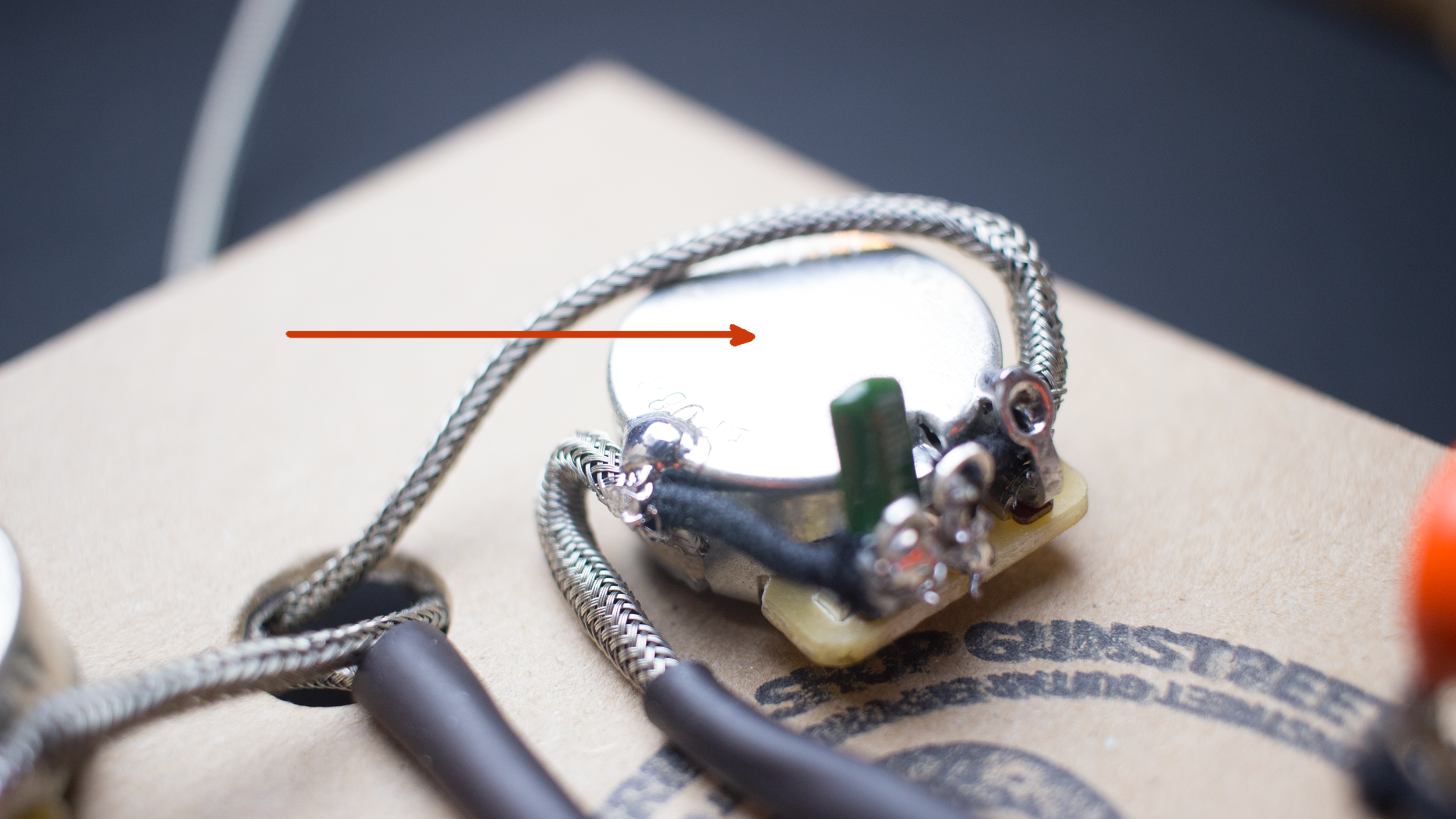

Solder the Ground Wire coming from your guitar bridge to the Casing of the Tone Pot



That's It!


If you have any questions feel free to contact us!
