Thank you for choosing Gunstreet. below is the instructions for a 50's Wiring to be installed in your Les Paul.

lp 50s how to switchcraft.jpg

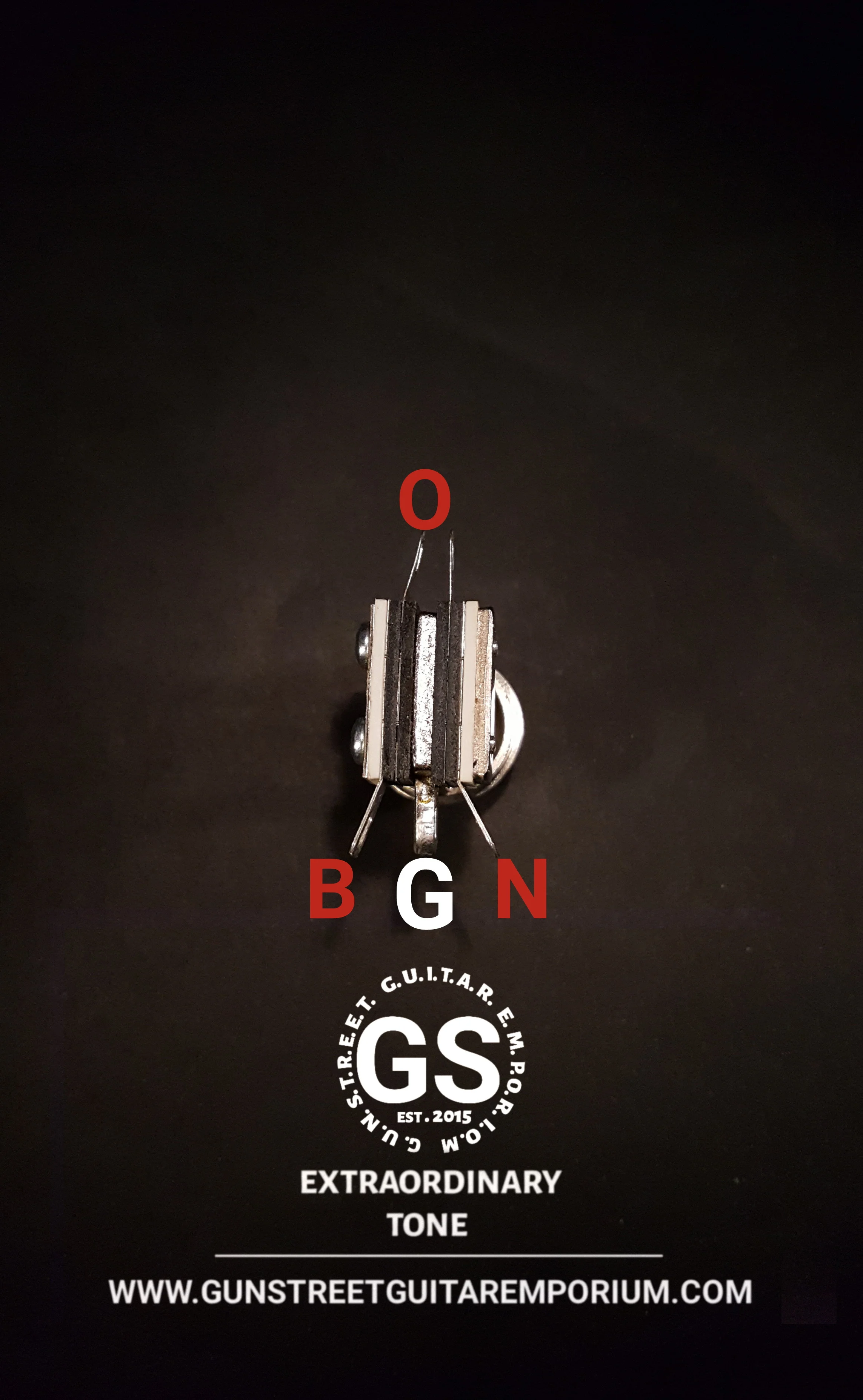

Switchcraft Output Jack

Solder the Wire labeled "O" to the section labeled "0" on the switch diagram above

Solder the Wire labeled "N" to the Right Lug Labeled "N" on the switch diagram above

Solder the Wire labeled "B" to the Left Lug Labeled "B" on the switch diagram above

Solder the Black Wire with no label to the Middle single Lug Labeled "G" on the switch diagram above



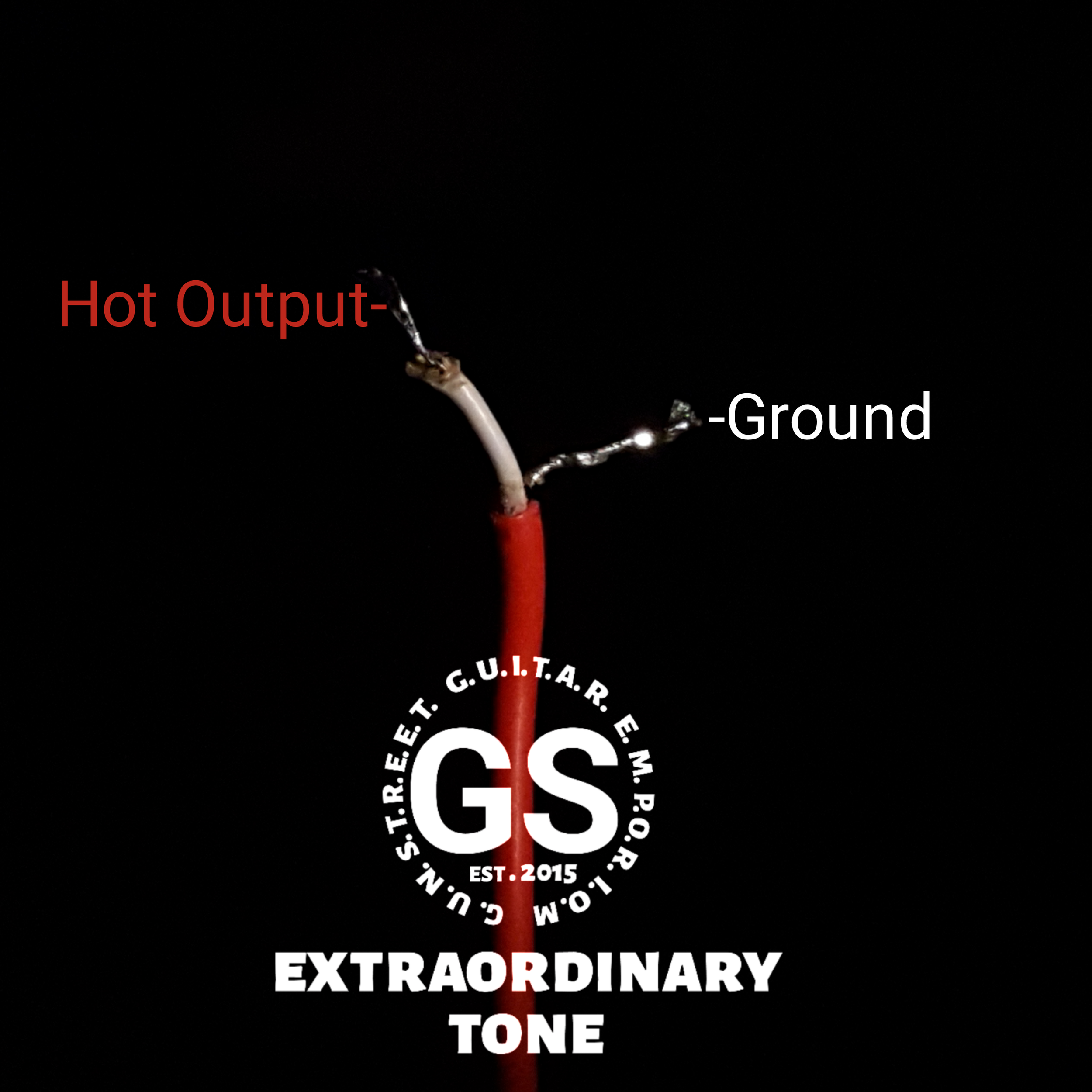

1470946942-picsay (2).png

bridhe hot.jpg

Bridge Volume: Bridge Pickup Install-Part 1

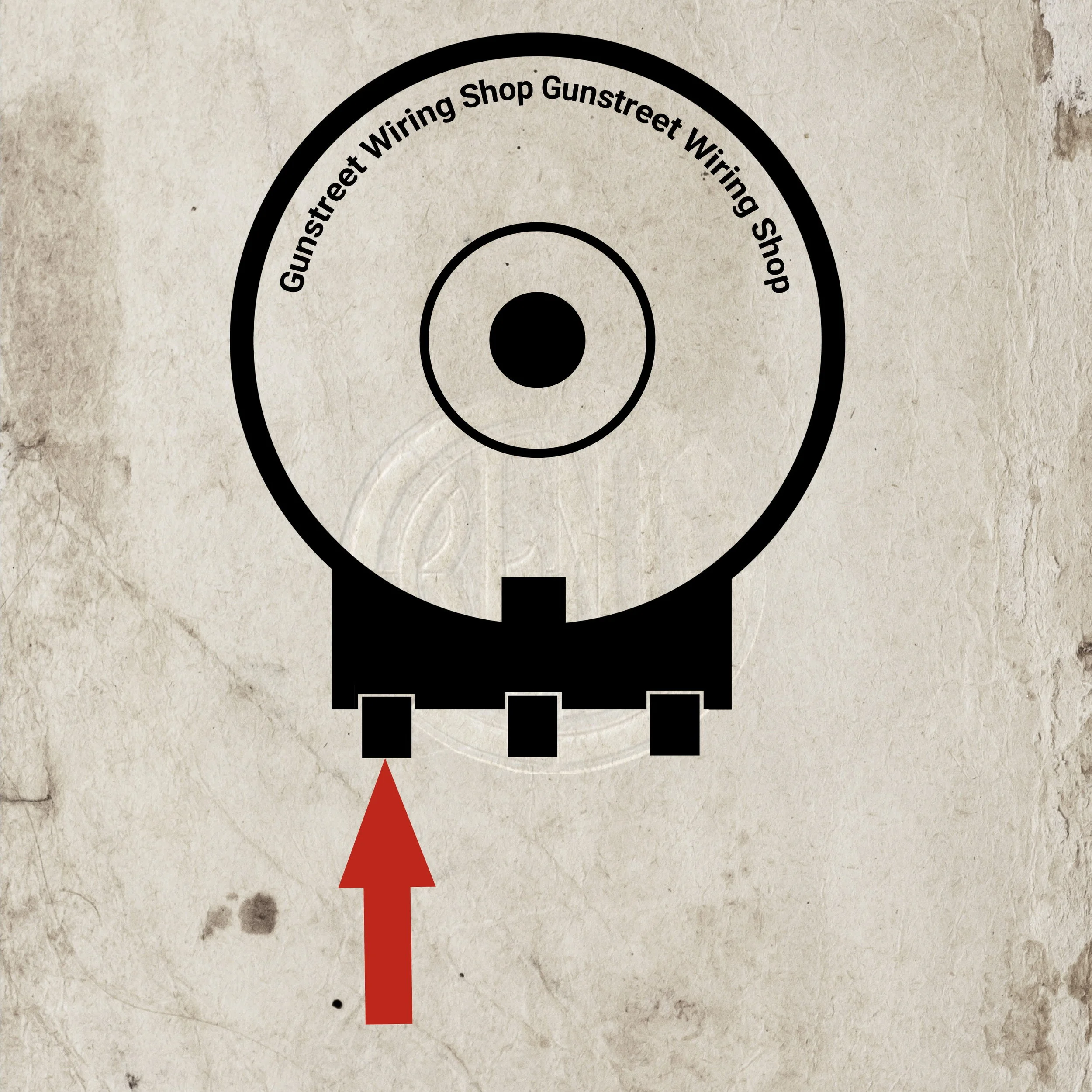

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions



Bridge Volume: Bridge Pickup Install-Part 2

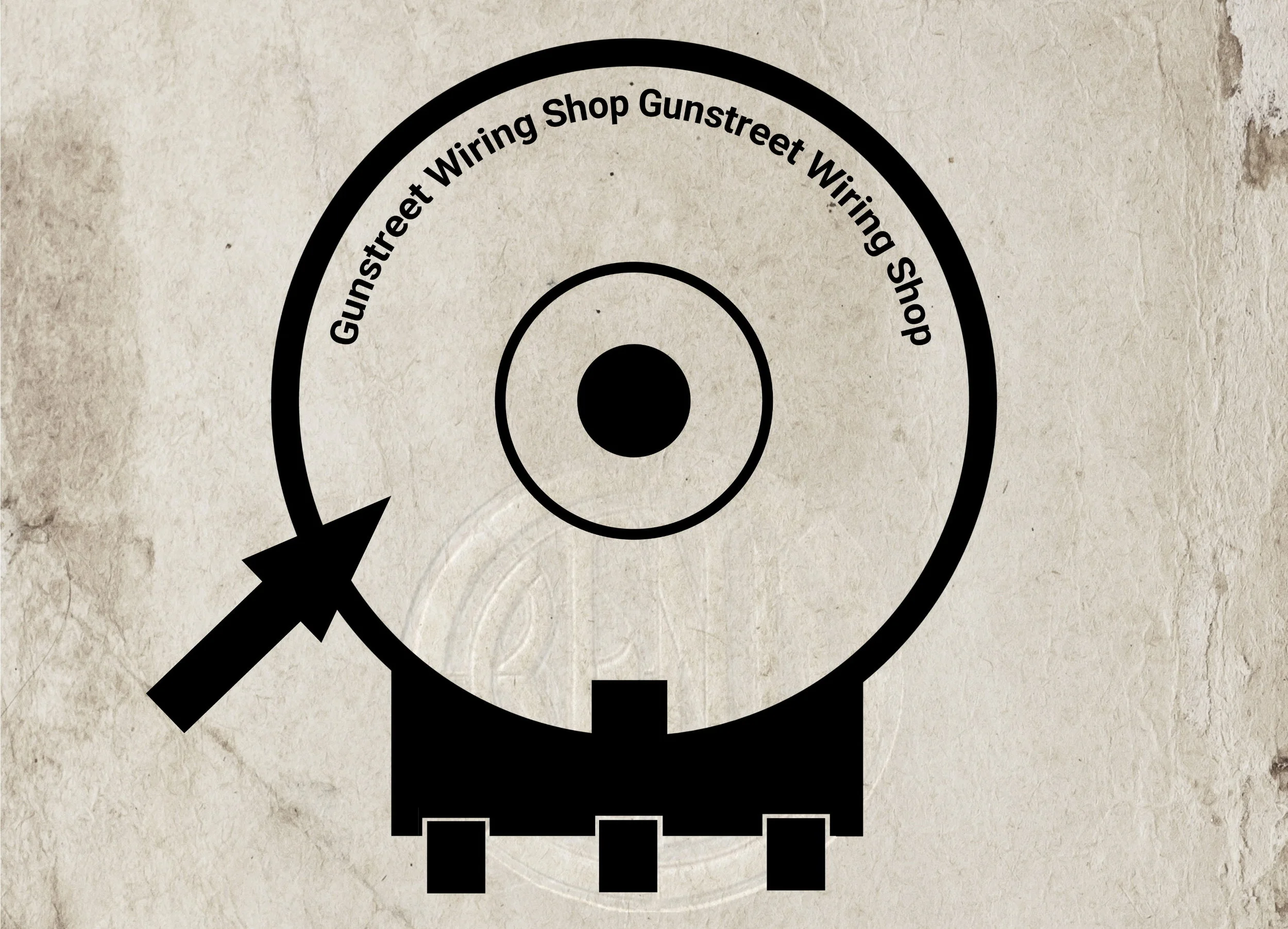

Next, Solder the pickups Ground to the casing of the Volume Pot.


bridhe ground.jpg

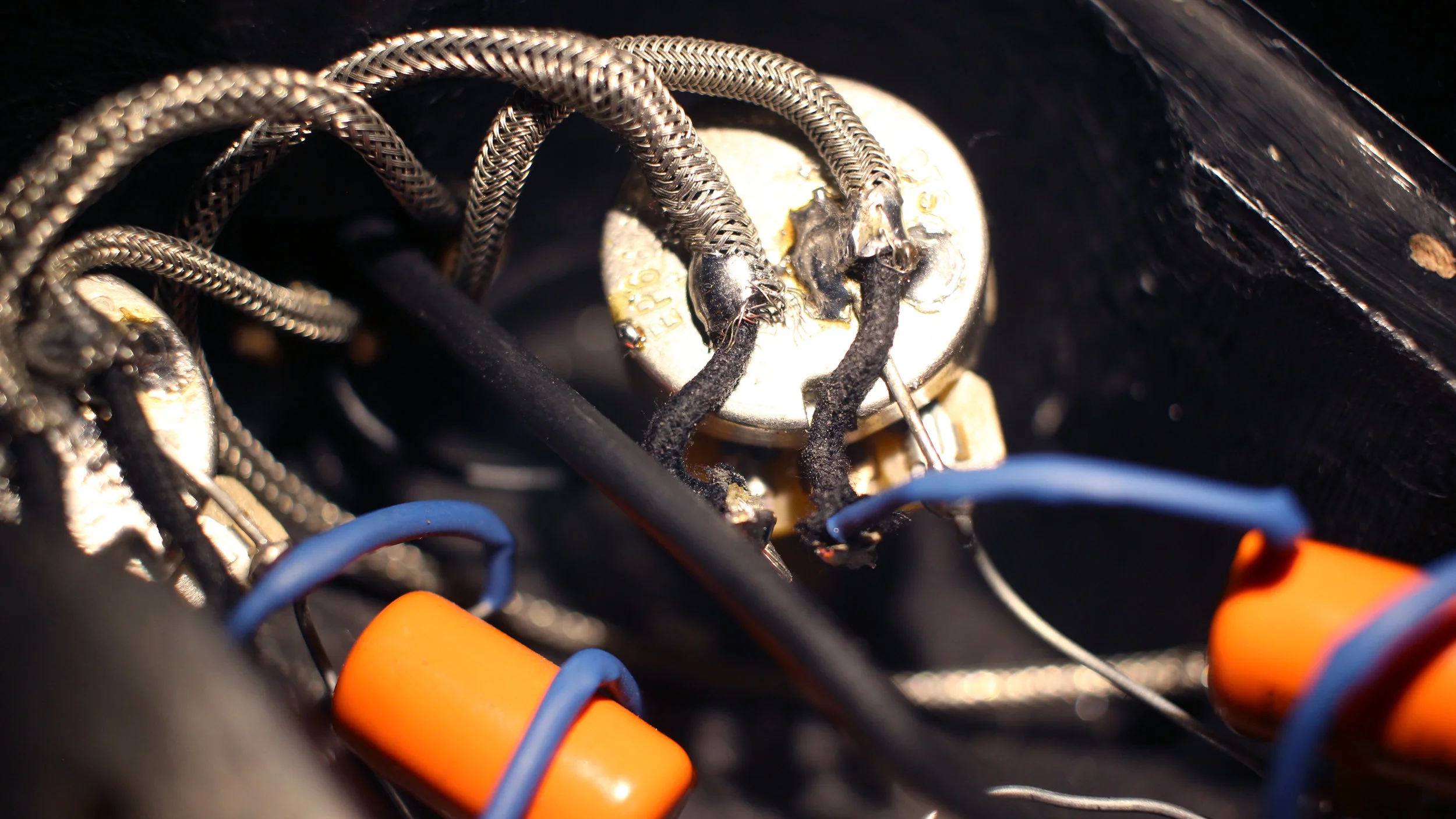

Repeat these steps for the Neck Volume

neck hot.jpg
Neck pickup gorund.jpg

Neck gorund.jpg
Las Paul bridge ground.jpg

Grounding the Harness

Solder the Ground Wire coming from your guitar bridge to the casing of any pot. In this case the Neck Volume was the Closest


That's It!
