Thank you for choosing Gunstreet. below is the instructions for a Volume Bleed Wiring to be installed in your 67 style flying v.

67 flying Volume Bleed WIRING HOW TO DIAGRAM

Most Common Pickup Wires

Key


H1=

Hot Output

G1=

Ground



1470946942-picsay (2).png

cts 500k hot

Stage One

Neck Volume Install

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions


Next, Solder the pickups Ground to the casing of the Volume Pot.


Repeat these steps for the Bridge Volume


67v bridge ground.jpg

67 ground.jpg

Grounding the Harness

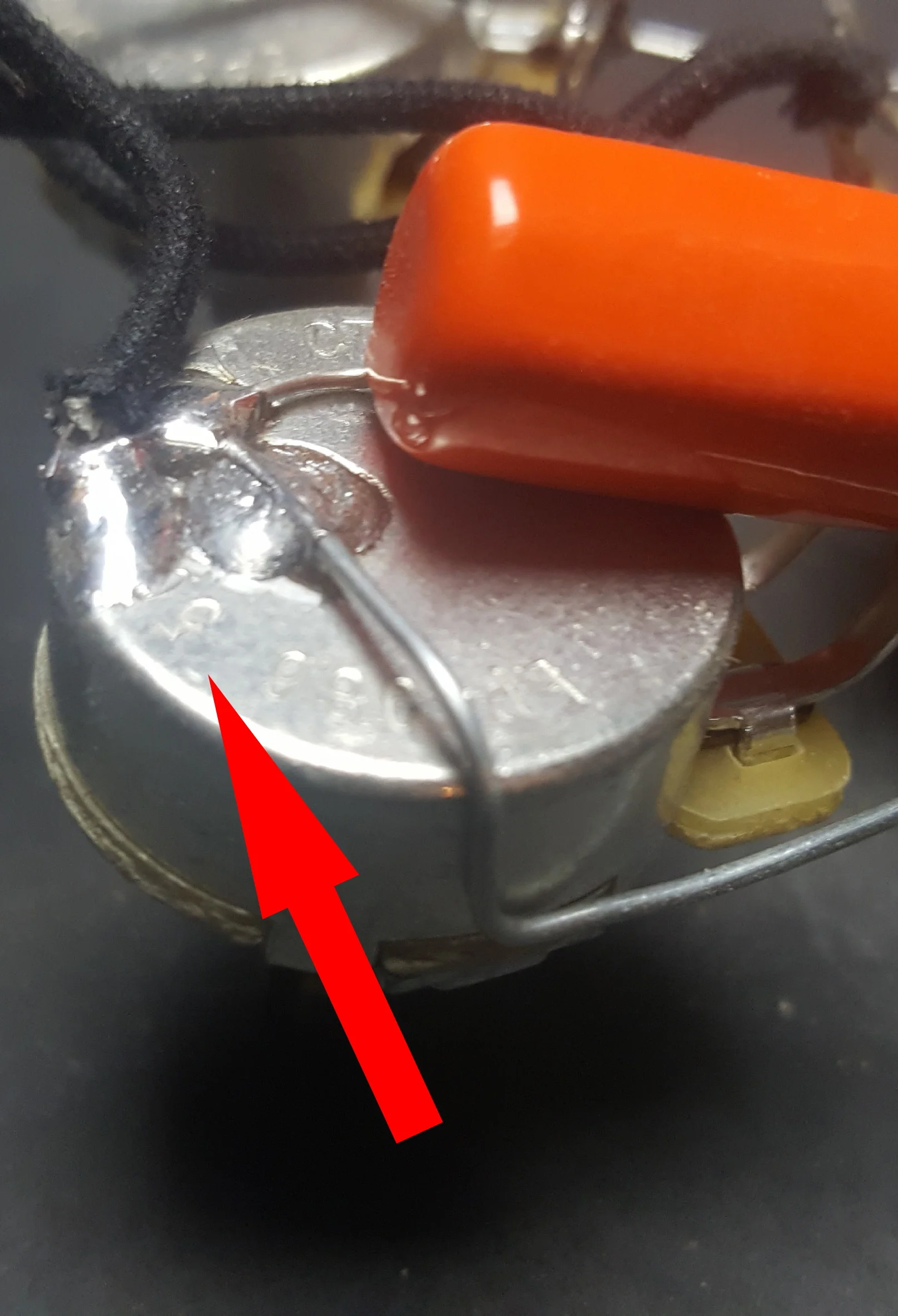

Solder the Ground Wire coming from your guitar bridge to the Casing of the Tone Pot

flying v BRIDGE GROUND

That's It!

If you have any questions feel free to contact us!
