Thank you for choosing Gunstreet. Below is the step by step instructions for your 4 way tele harness. Please note that these instructions are best used when paired with the wiring diagram we included in your box.

Are you using a mobile device or tablet? This page is best viewed on the "Desktop Site" view


4 way tele instructio s.jpg

Most Common Pickup Wires

Tele bridge pickup wires (1).JPG
tele neck.JPG

Does your tele's neck pickup only have 2 wires? Click here


Let's Start with the deconstruction



Remove the 2 plate screws


Make sure and take note of two things what color your pickup wires are and what ground wires you have. in this example the bridge pickup features a yellow and black wire and the neck is white and black



Squier affinity Telecaster Wiring

Squier telecaster output jack

Remove the output


Next remove the output jack and remove any wires attached to the guitars wiring. Make sure once you are done to arrange the wires in a way you can remember what they are. i.e neck pickup wires together, bridge pickup wires together, and any grounds together. Install the new wiring onto the metal plate



Squier affinity Telecaster cavity

lets start with the neck pickup


5 switch tele-picsay.jpg

bridge hot output

Start with the yellow bridge hot wire  by soldering it to the top right right lug named "5" on the diagram above

Neck hot output

next, solder the white neck hot output to the second second to top lug on the right named "4" on the diagram below


4 switch tele.jpg

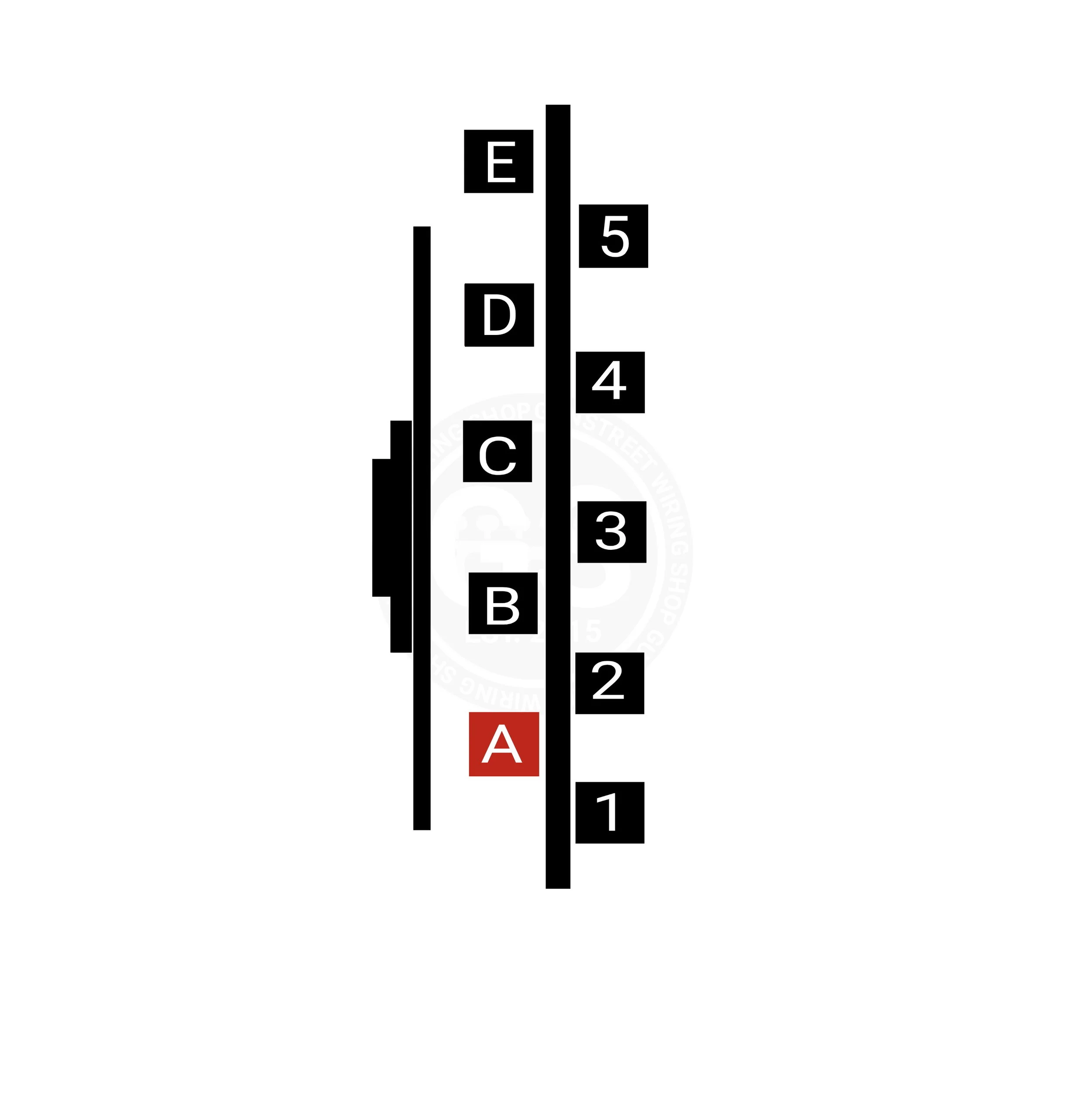

A tele switch.jpg

Neck Pickup Ground

Next solder the Neck pickups winding finish ground to The bottom left lug named A Above



the

Most important Part


Next, combine the "Ground Wire" coming from your guitars Bridge pickup and the "Ground Wire" coming from your guitars actual bridge and your Necks second ground to the casing casing of the volume pot. This will ground the whole guitar stopping most buzzing when touching the metal parts. Once that is done go ahead and reinstall the metal plate to the guitar.


How to install Gunstreet

5 Way Telecaster Wiring

That's It!


You can test if the wiring is working by going through the controls while lightly tapping the pickups with a metal object. If you have any questions feel free to contact us!





5 Way Telecaster Wiring

Position 1: Neck Pickup


5 Way Telecaster Wiring


5 Way Telecaster Wiring

Position 3: Neck & Bridge Pickup


Position 3: Bridge Pickup


Position 4:

Neck & Bridge in Series

This set up is design to make the two pickups act like a humbucker. Meaning instead of two single coils with individual outputs (Example Neck 8k, Bridge 8.5k) you have a combined pickup with one big output (16.5k) and the more output it his the more it picks up!


5 Way Telecaster Wiring
