Thank you for choosing Gunstreet. below is the instructions for an Blender Wiring to be installed in you Strat style guitar

Are you using a mobile device or tablet? This page is best viewed on "Desktop Site" view


strat blender.jpg
cloth wire pickups.jpg

Most Common Pickup Wire


Bridge Switch.jpg

Pickup Install

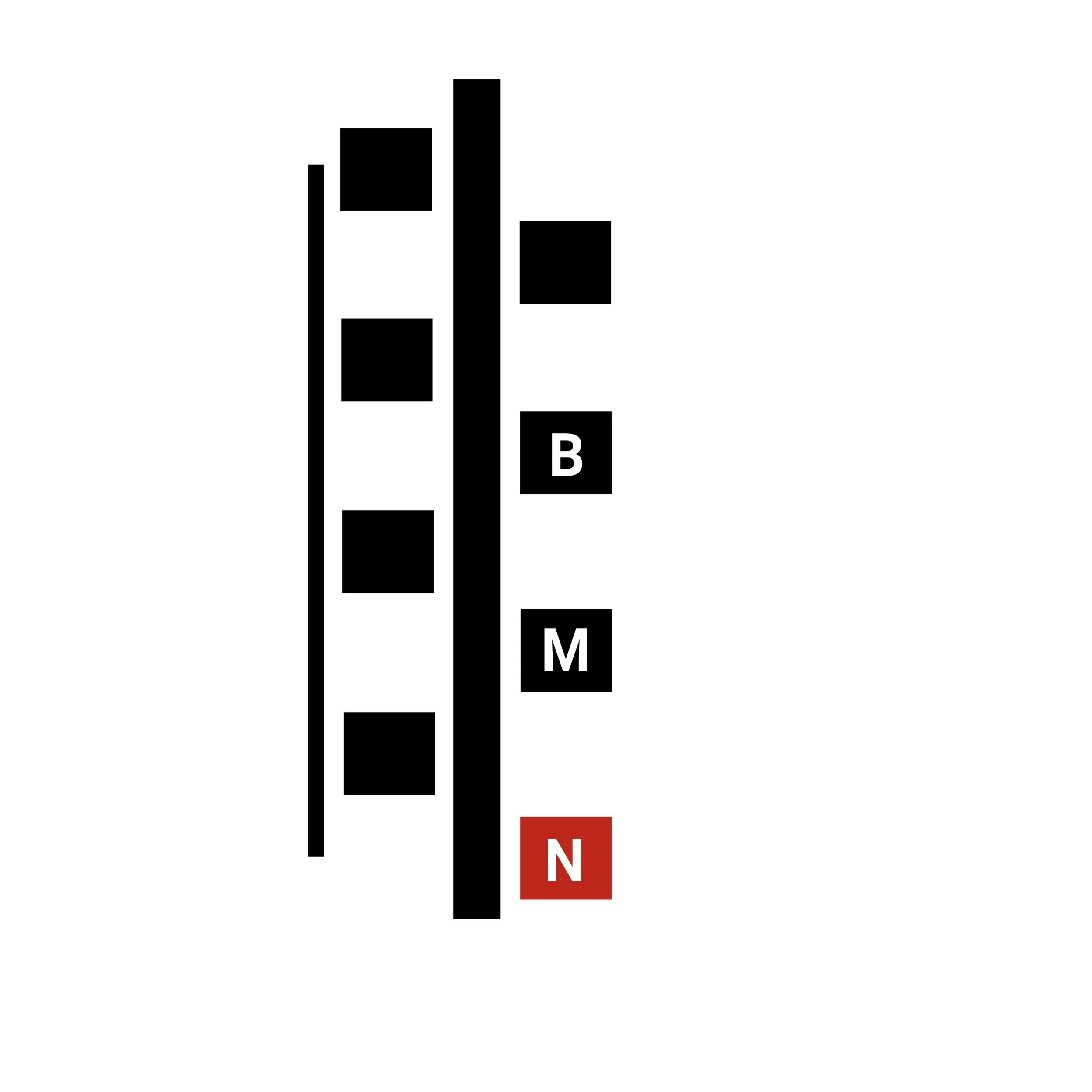

Solder your Neck Pickup's Hot to the 1st lug on the right (See diagram above)



middle swit h.jpg

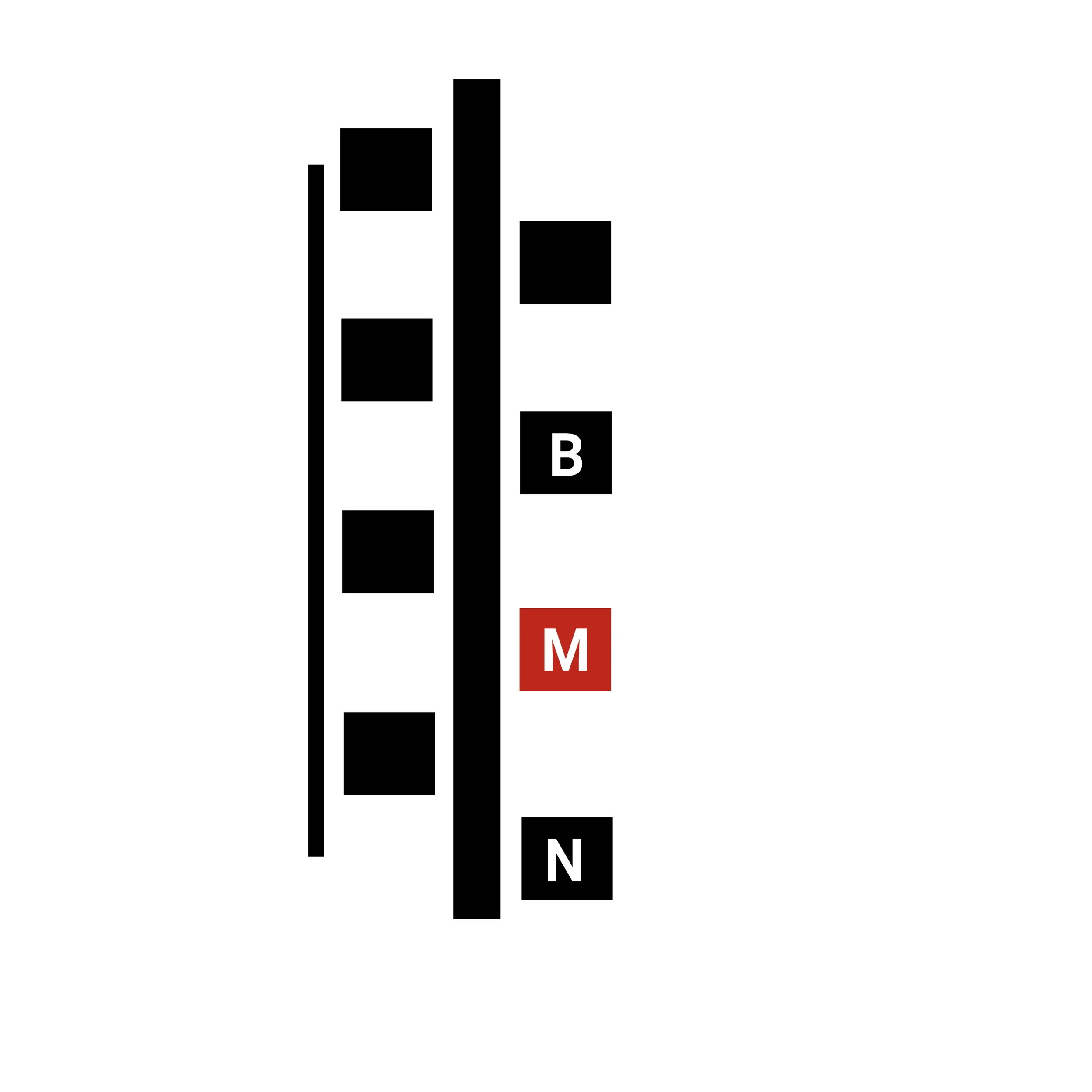

Solder your Middle Pickup's Hot to the 2rd lug on the right (See diagram above)



bridge switch (1).jpg

Solder your Neck Pickup's Hot to the 3rd lug on the right (See diagram above)




Solder all of your pickups grounds and the ground coming from your guitars bridge to the casing of the volume pot



Solder the Hot Wiring coming from your harnesses volume control to the hot lug on the output jack.

Note* The color of the hot wire will either be White or Yellow

Solder the Ground Wiring coming from your harnesses volume control to the ground lug on the output jack.


That's It!

If you have any questions feel free to contact us!



How to use this harness


position 1.JPG

Position 1

In position 1 with the Blender control at 10 you have your normal Strat bridge pickup sound. As you start to roll off the blender control the Neck pickup starts to blend in.

position 4.JPG

Position 4

In position 4 with the Blender control at 10 you have your normal Strat Middle & Neck pickup sound. As you start to roll off the blender control the Bridge pickup starts to blend in.

position 2.JPG

Position 2

In position 2 with the Blender control at 10 you have your normal Strat Bridge and Middle pickup sound. As you start to roll off the blender control the Neck pickup starts to blend in.

blender 5-picsay.JPG

Position 5

In position 5 with the Blender control at 10 you have your normal Strat Neck pickup sound. As you start to roll off the blender control the Bridge pickup starts to blend in.
