Thank you for choosing Gunstreet. Below is the step by step instructions for your 5 way tele harness. Please note that these instructions are best used when paired with the wiring diagram we included in your box.


Are you using a mobile device or tablet? This page is best viewed on the "Desktop Site" view


Most Common Pickup Wires

Tele bridge pickup wires (1).JPG
tele neck.JPG

Does your tele's neck pickup only have 2 wires? Click here


Let's Start with the deconstruction



Remove the 2 plate screws


Make sure and take note of two things what color your pickup wires are and what ground wires you have. in this example the bridge pickup features a yellow and black wire and the neck is white and black



Squier affinity Telecaster Wiring

Squier telecaster output jack

Remove the output


Next remove the output jack and remove any wires attached to the guitars wiring. Make sure once you are done to arrange the wires in a way you can remember what they are. i.e neck pickup wires together, bridge pickup wires together, and any grounds together. Install the new wiring onto the metal plate



Squier affinity Telecaster cavity
Squier affinity Telecaster Wiring vs Gunstreet wiring

lets start with the neck pickup


How to install Gunstreet
switch 1.jpg

Neck Pickup Finish ground

Start with the black neck pickup ground  by soldering it to the bottom right lug named "1" on the diagram above

Neck hot output

next, solder the white neck hot output to the second to the bottom left lug named "B" on the diagram below


switch b.jpg
How to install Gunstreet

How to install Gunstreet

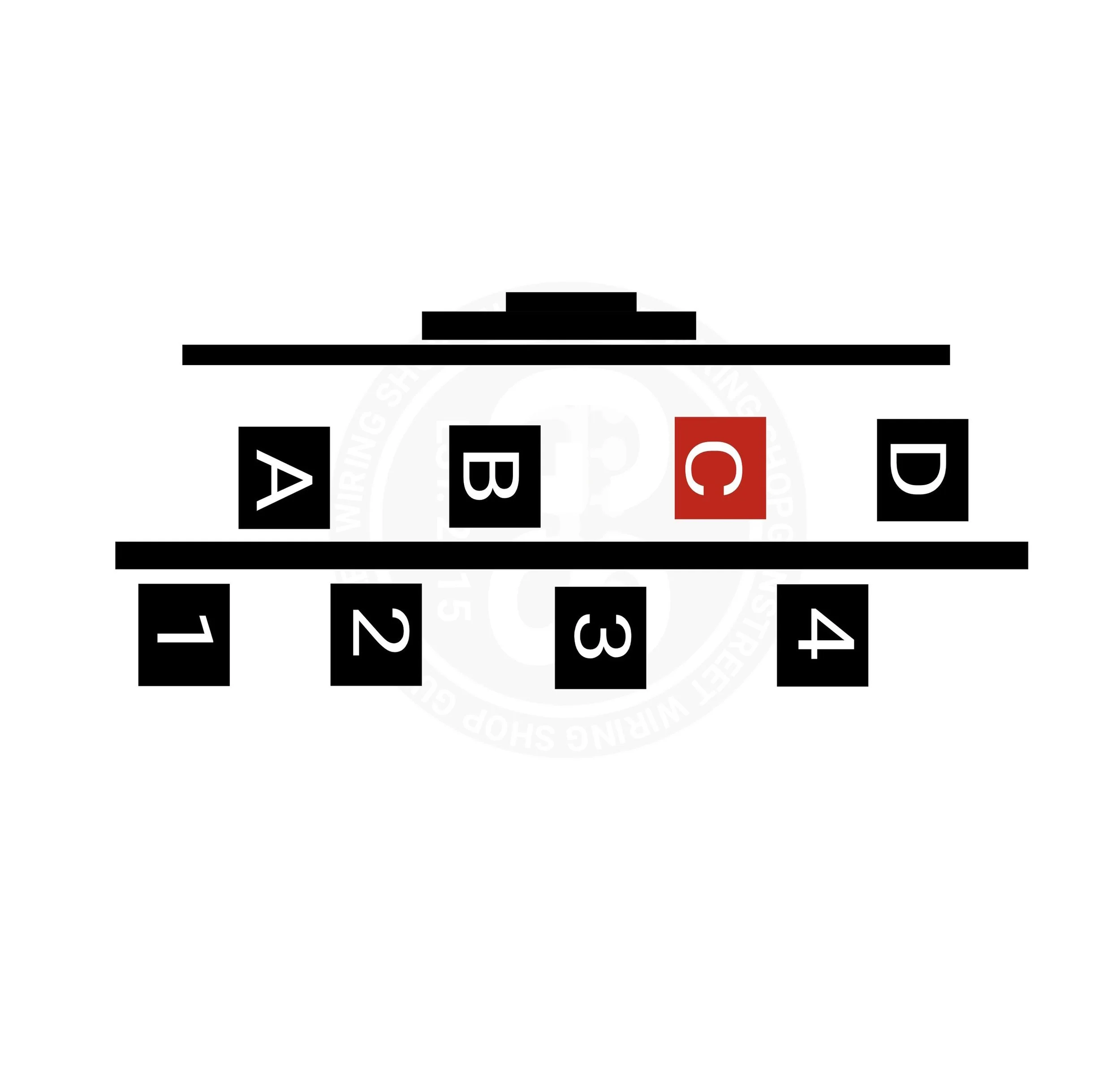

switch c.jpg

Installing the bridge pickup

next, solder the Yellow  bridge hot output to the second to the top left lug named "C" on the diagram above


the

Most important Part


Next, combine the "Ground Wire" coming from your guitars Bridge pickup and the "Ground Wire" coming from your guitars actual bridge and your Necks second ground to the casing casing of the volume pot. This will ground the whole guitar stopping most buzzing when touching the metal parts. Once that is done go ahead and reinstall the metal plate to the guitar.

How to install Gunstreet

5 Way Telecaster Wiring

That's It!


You can test if the wiring is working by going through the controls while lightly tapping the pickups with a metal object. If you have any questions feel free to contact us!





5 Way Telecaster Wiring

Position 1: Neck Pickup


5 Way Telecaster Wiring


5 Way Telecaster Wiring

Position 2: Neck & Bridge Pickup


Position 3: Bridge Pickup


5 Way Telecaster Wiring

Position 4:

Neck & Bridge Pickups out of Phased

With this set up the two pickups are fighting each other and the strongest frequencies survive. This phase setting is perfect for "chicken pick'n" and distortion pickup squeals.

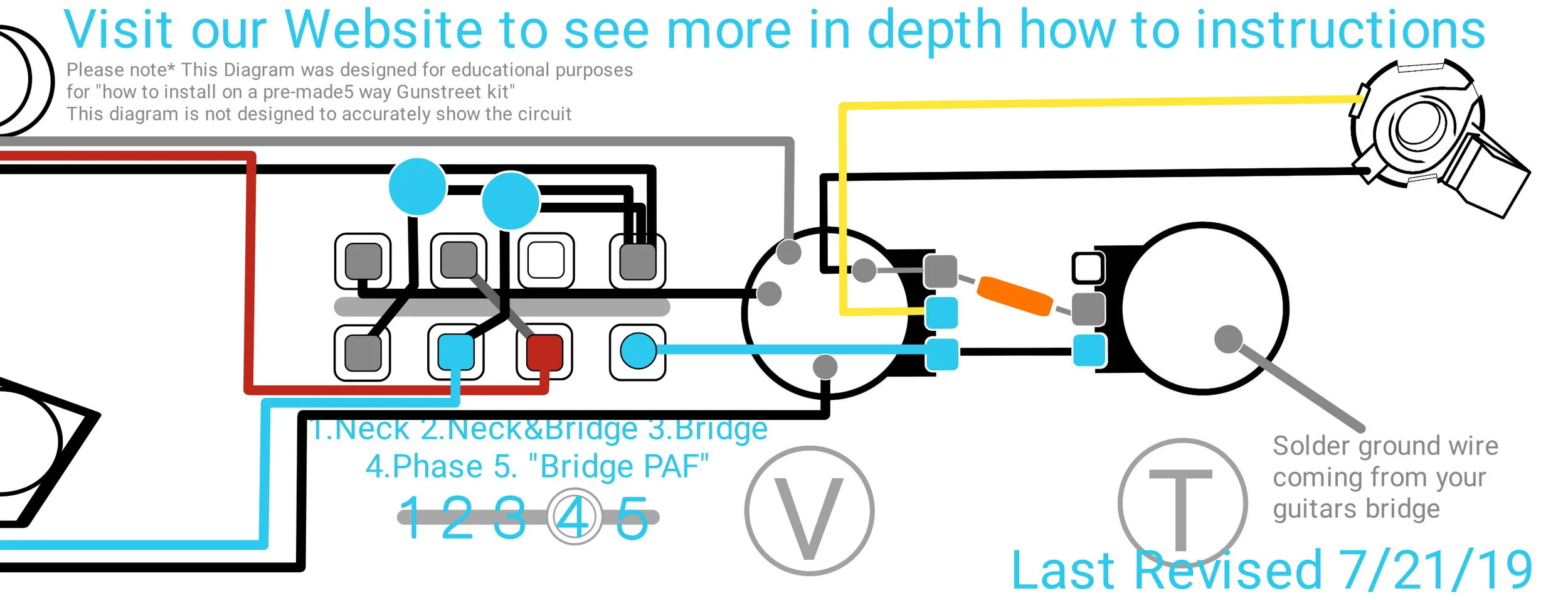

5 Way Telecaster Wiring

Position 5:

"PAF Humbucker"

With this set up we tried to create that distinct Classic PAF sound. We cut most of the low end and some of the mids creating a nice top end clarity like a  famous PAF bridge humbucker
