Thank you for choosing Gunstreet. below is the instructions for a Modern Wiring to be installed in your Flying V.

Most Common Pickup Wires

1470946942-picsay (2).png


Stage One


Neck Volume Install

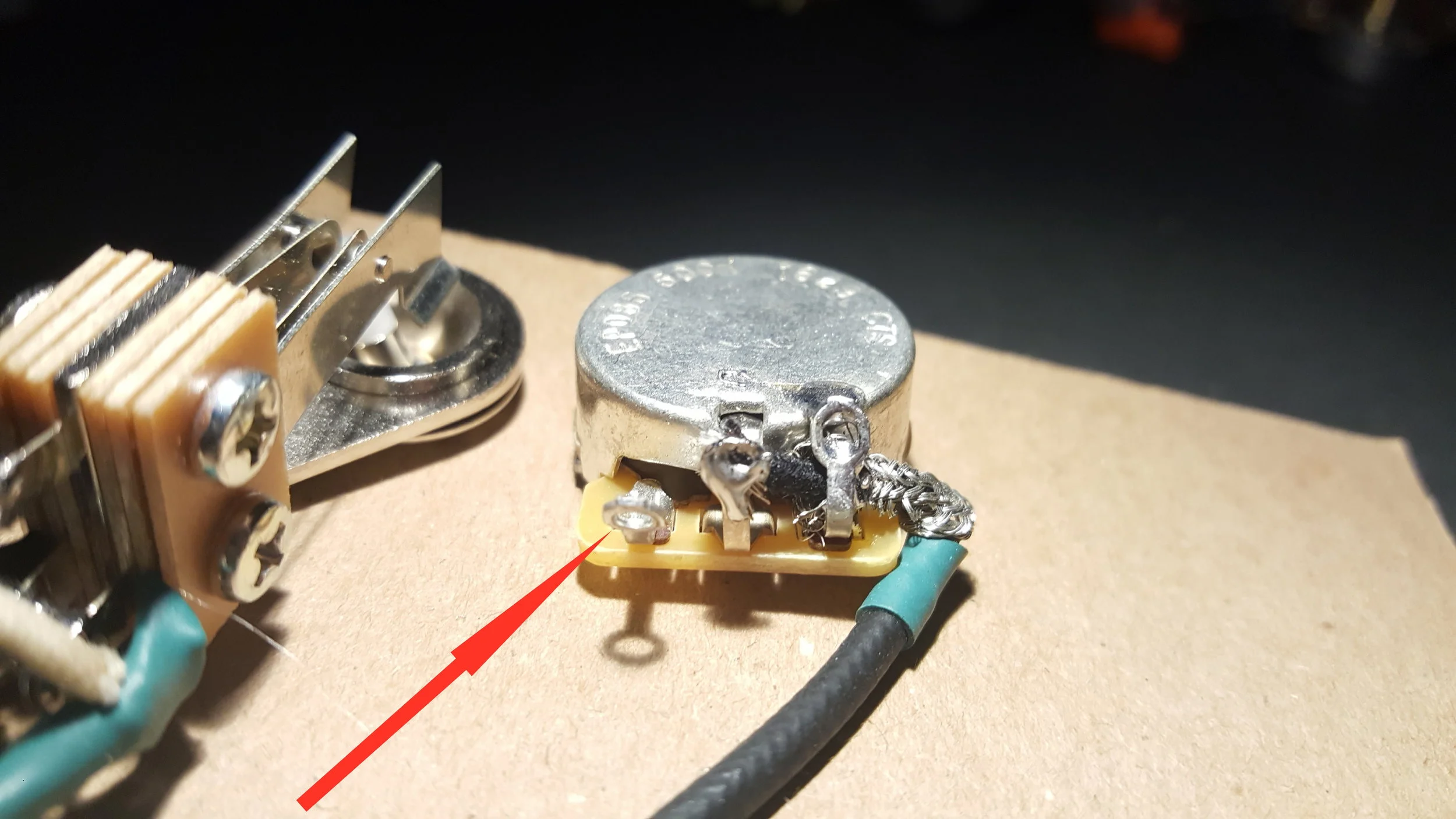

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions

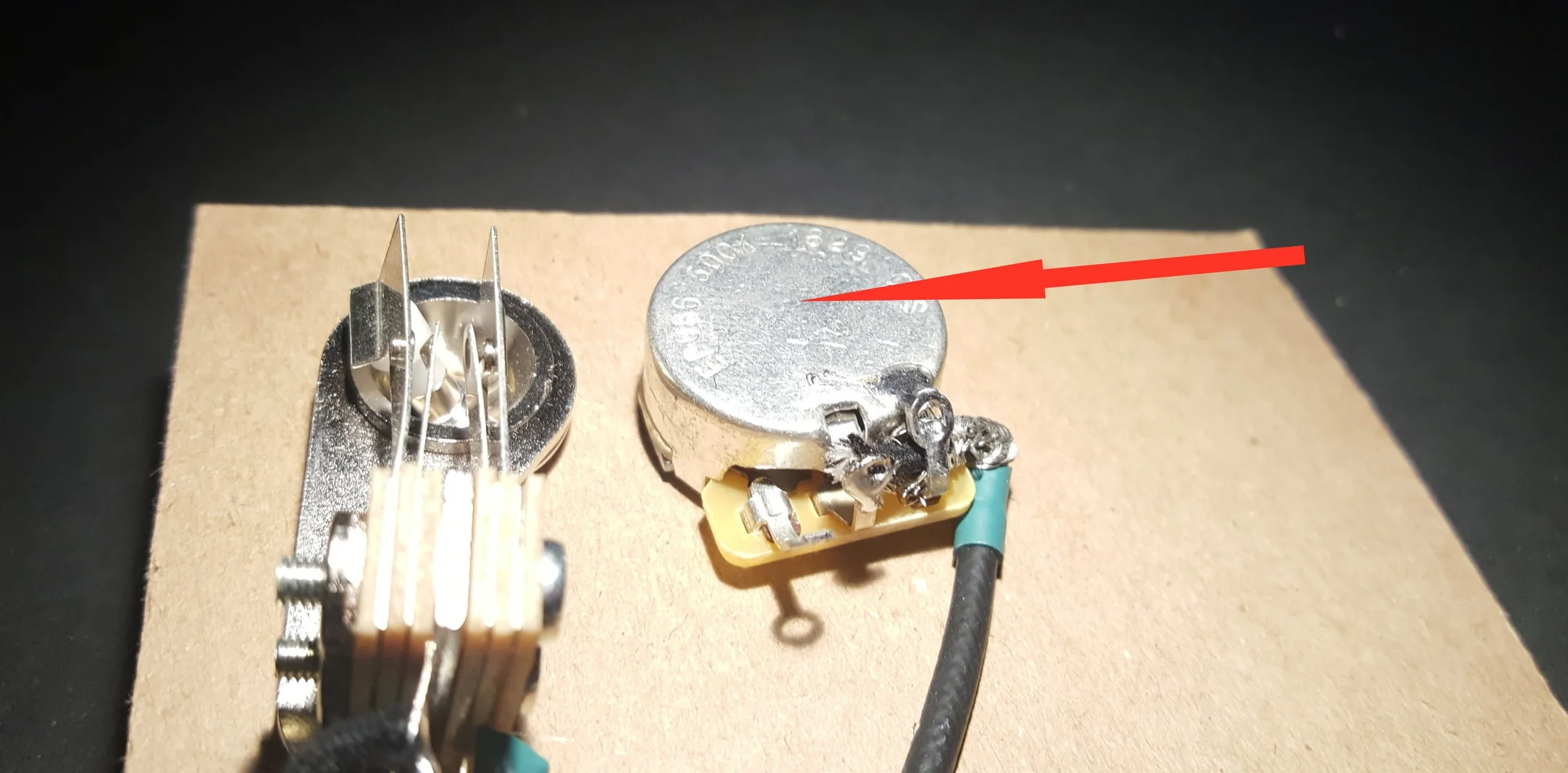

Next, Solder the pickups Ground to the casing of the Volume Pot.

58vbridge ground.jpg

Repeat these steps for the Bridge Volume


58v bridge hot install.jpg

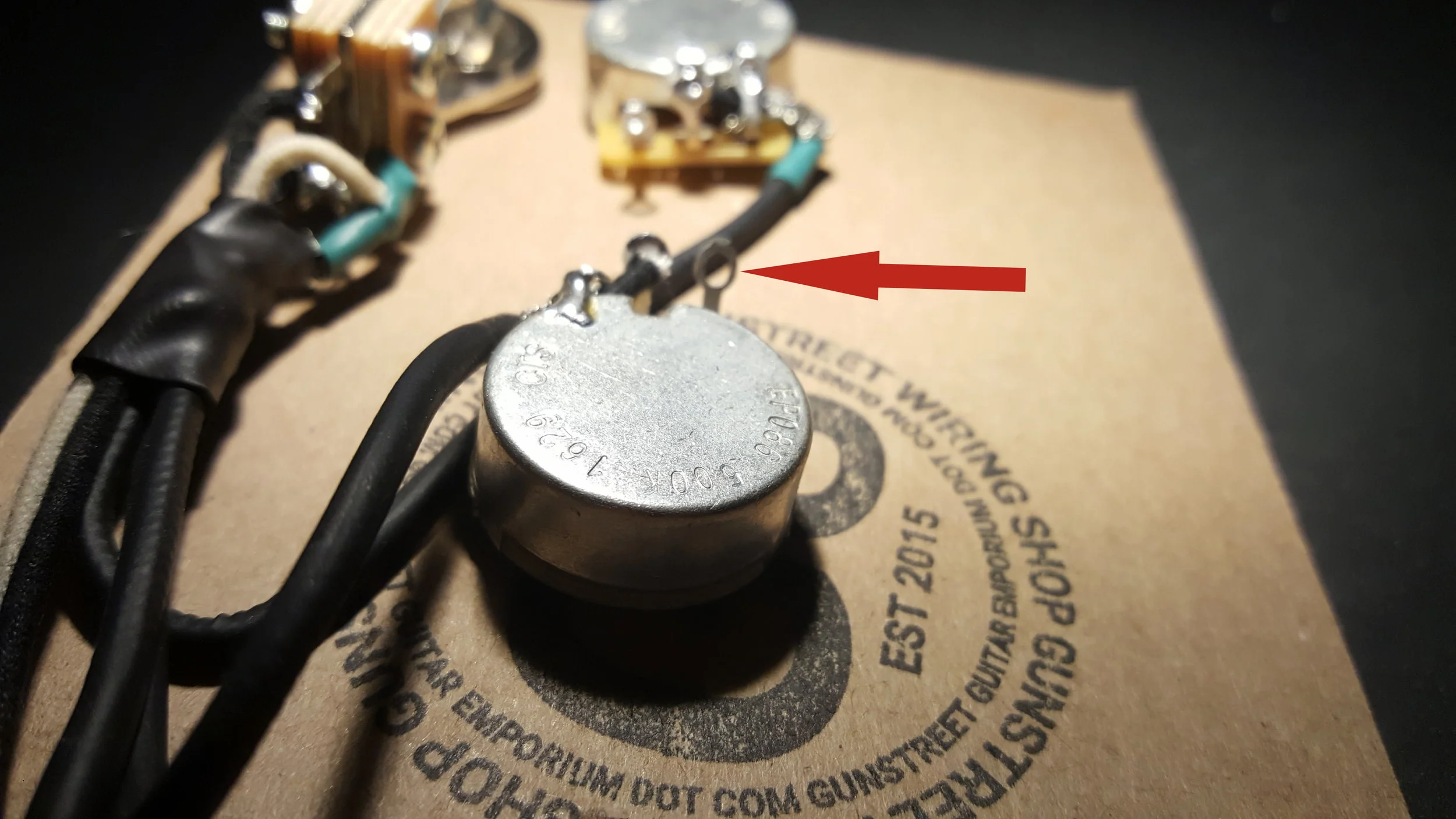

Solder the Hot Pickup wire to the First Lug on the potentiometer.  See diagram on the left. If not sure which wire is hot please refer to your pickups manufacturers instructions

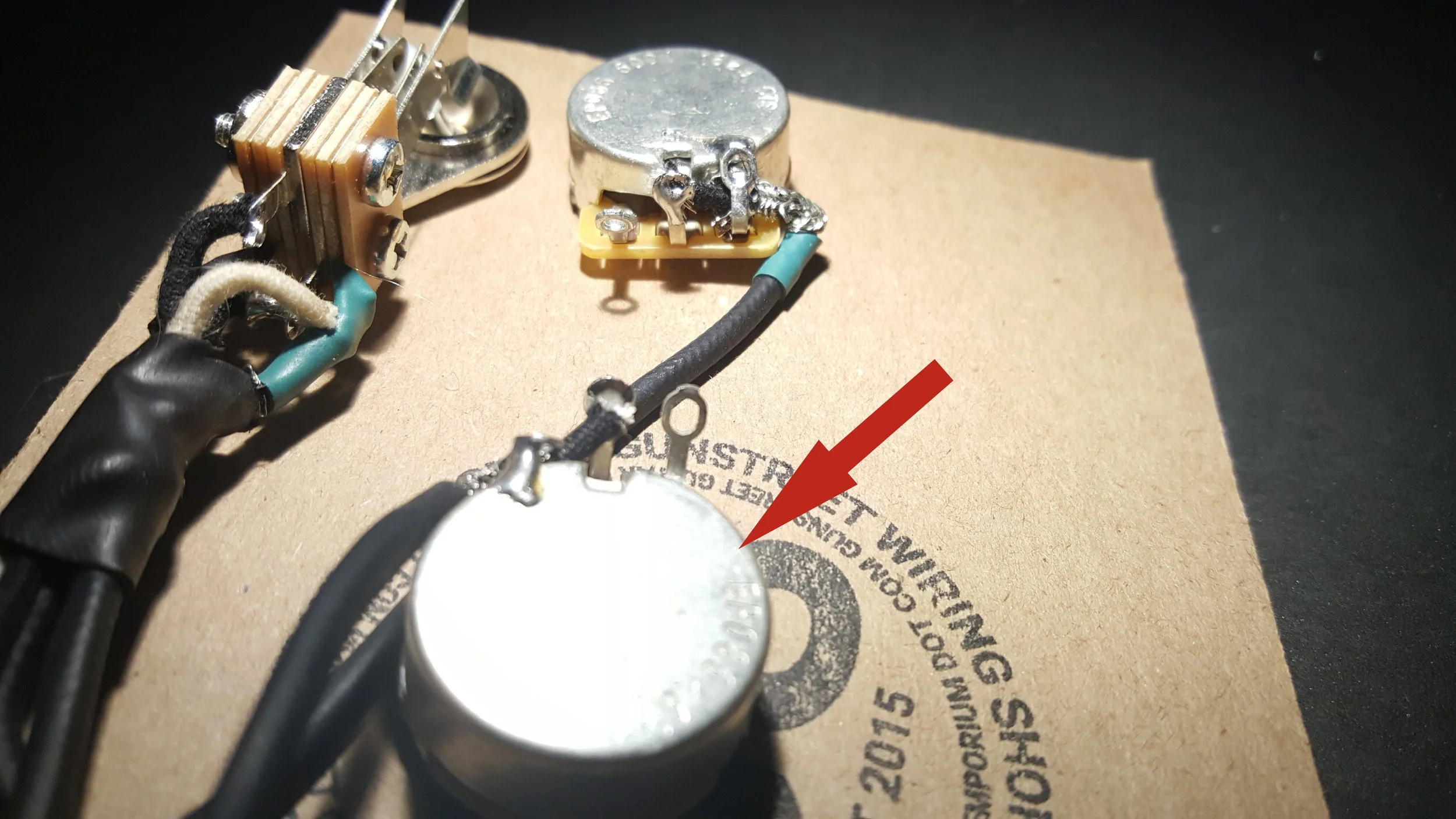

Next, Solder the pickups Ground to the casing of the Volume Pot.

58v bridge ground.jpg

sg bridge ground .jpg

Grounding the Harness

Solder the Ground Wire coming from your guitar bridge to the Casing of the Tone Pot

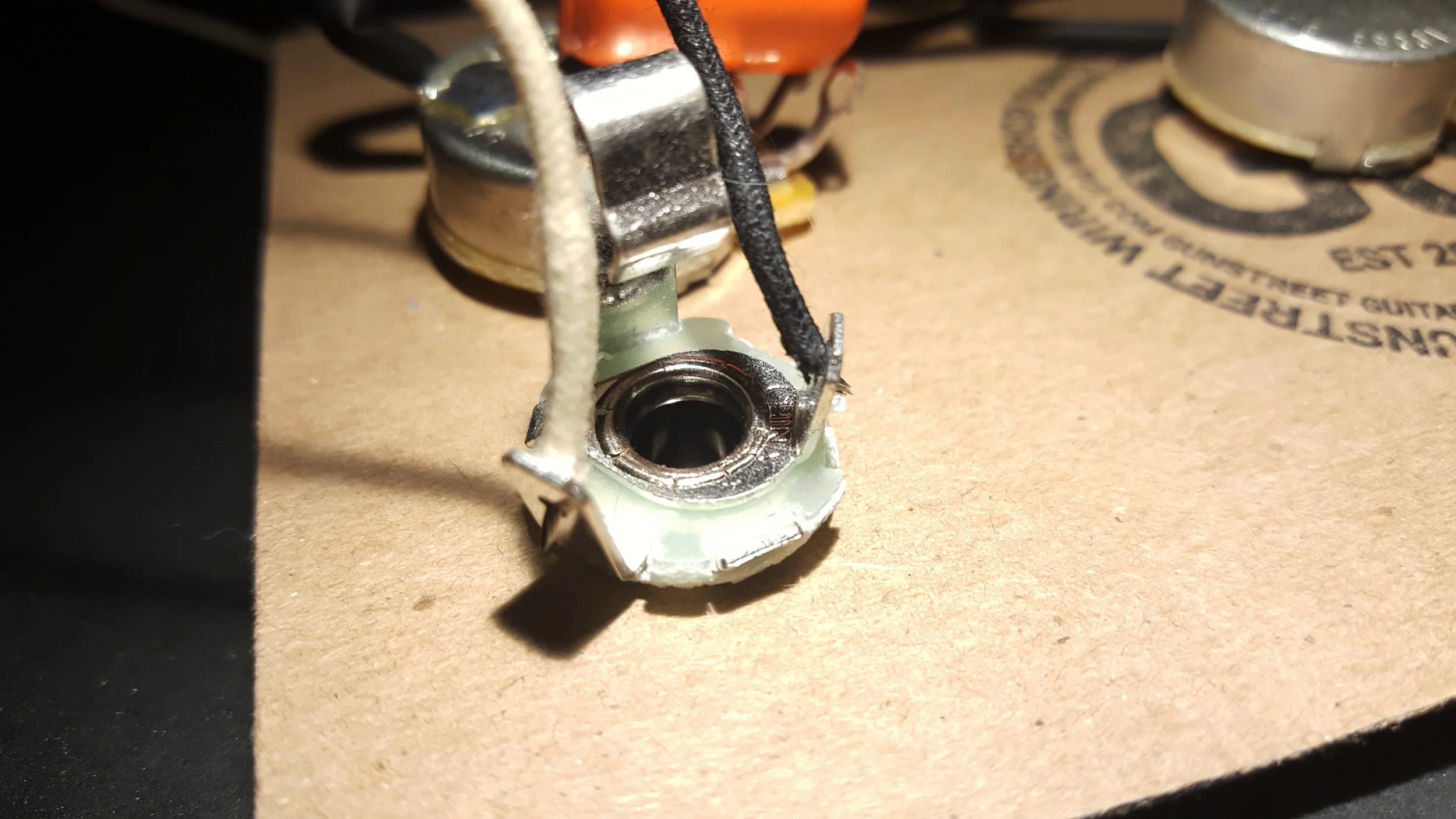

Output Jack Assembly


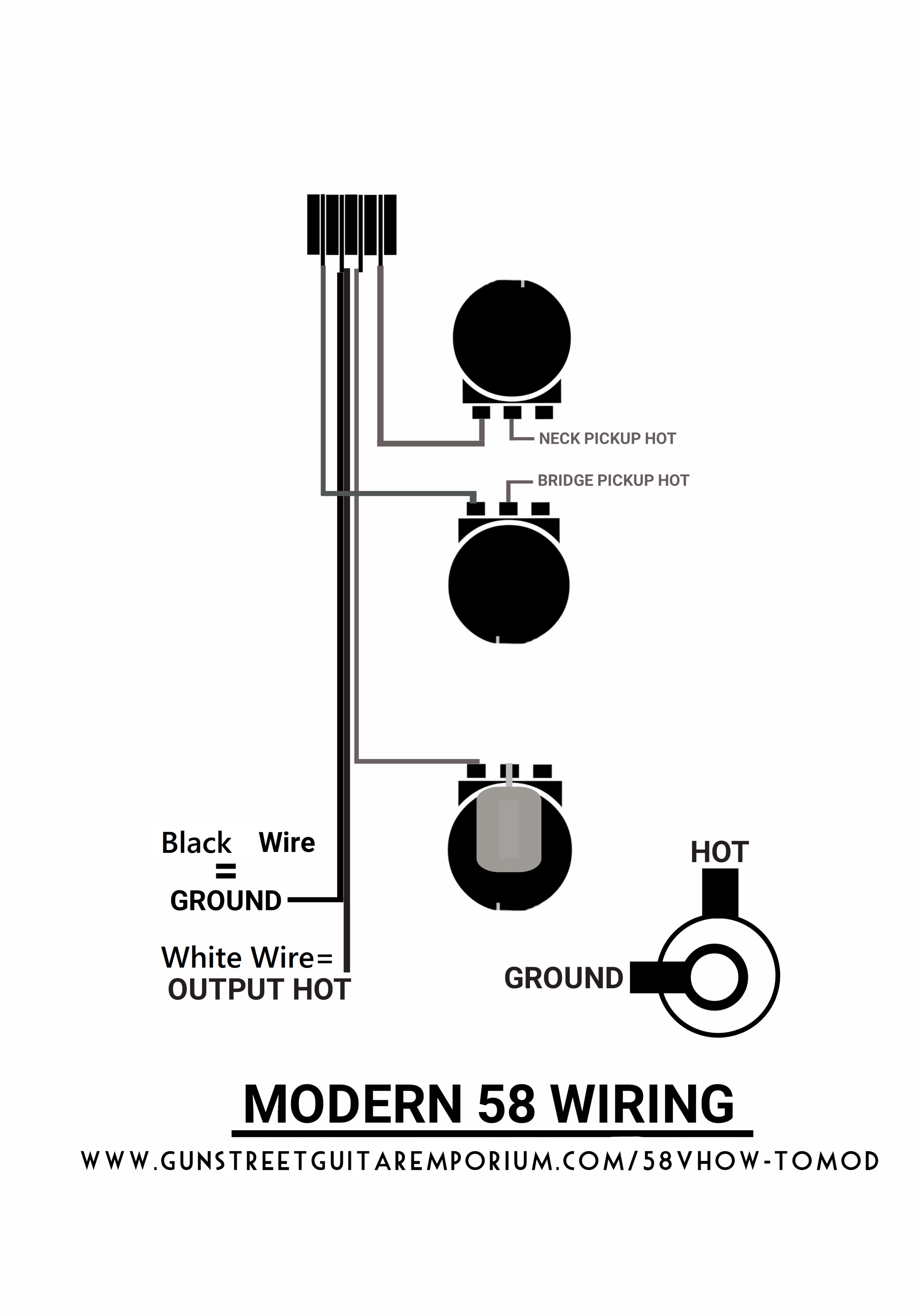

Solder the Black Wire coming from your guitars tone control to the ground of the output jack label B on the Diagram.

Solder the White Wire to the Hot on the output Labeled A on the diagram.
